DIN rail power supply 12V 7.1A 85W ESPE | HDN-10012
DIN rail power supply 12V 7.1A 85W ESPE | HDN-10012
DIN rail power supply 12V 7.1A 85W ESPE | HDN-10012
DIN rail power supply 12V 7.1A 85W ESPE | HDN-10012

DIN rail power supply 12V 7.1A 85W ESPE | HDN-10012

132,99 PLN
incl. VAT / pcs
Regular price / pcs
of
You can also buy using:
28 days for free returns
Safe shopping
Deferred Payments. Buy now, pay in 30 days, if you don't return it
Buy now, pay later - 4 steps
When choosing a payment method, select PayPo.PayPo - buy now, pay later
PayPo will pay your bill in the store.
On the PayPo website, verify your information and enter your social security number.
After receiving your purchase, you decide what suits you and what doesn't. You can return part or all of your order - then the amount payable to PayPo will also be reduced.
Within 30 days of purchase, you pay PayPo for your purchases at no additional cost. If you wish, you spread your payment over installments.
Product sold out
You will receive an email notification from us when the product is available again.
Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Contact details entered above are not used to send newsletters or other advertisements. When you sign up to be notified, you hereby agree to receive only a one-time notification of a product re-availability.

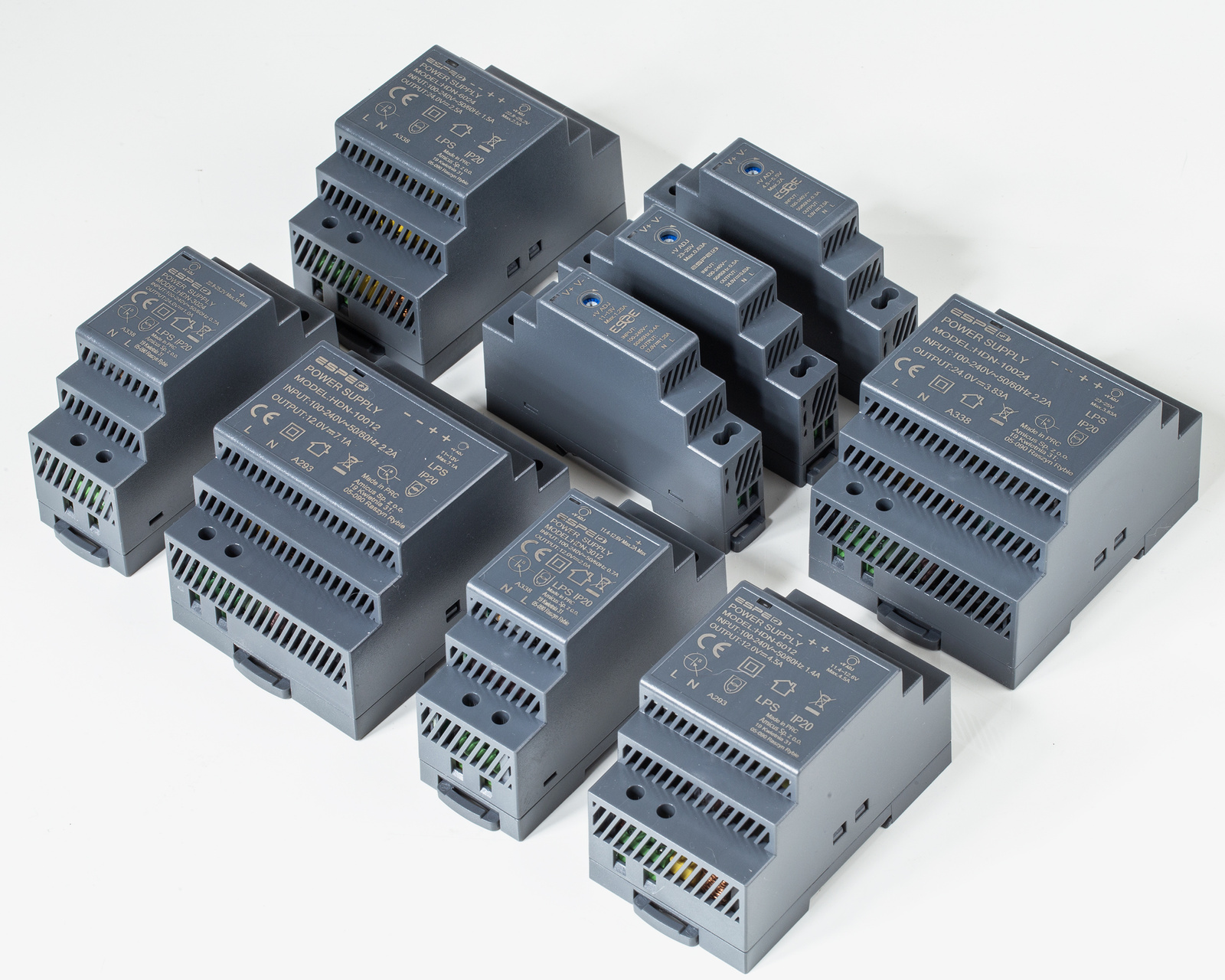

The  ESPE-HDN10012 is a high-quality, high-performance switching power supply in a plastic enclosure for mounting on a 4U wide DIN TS35 mm rail. Its design is based on high-quality electronic components that allow for continuous, long-term operation. It is reliable, fully protected and stable. It provides high efficiency and excellent technical performance. The perforated housing provides good ventilation and the trimmer allows accurate voltage adjustment to compensate for voltage drop across the leads. Dual output terminals make it easy to connect loads.



SPECIFICATIONS:

input parameters:

  • Input voltage range 90-264 VAC
  • Frequency range of mains supply voltage:  47-53 Hz
  • no-load power consumption: less than 0.5 W

output parameters:

  • regulation type: CV - constant output voltage
  • Rated output voltage: 12 V
  • output voltage trimmer adjustment: 11-13V
  • Rated output power: 85W
  • rated load current 7,1 A
  • max. output voltage ripple: 150 mVp-p
  • energy conversion efficiency: over 89%
  • additional information:
  • operating temperature range: 0ºC to +40ºC
  • output protection:  overcurrent protection (OCP), short circuit protection (SCP), overvoltage protection (OVP)
  • input protection:  overvoltage (OVP), undervoltage (UVP)
  • MTBF: 30 h
  • dimensions: 90x58x70  mm
  • weight: 240 g
  • housing: IP20

characteristics:

  • small dimensions
  • high power output
  • based on high-end electronic components
  • all-round protected, low surge current
  • trimmer
  • perforated housing
  • LED indicator light
  • dual output terminals

application:

  • industrial automation systems
  • alarm and monitoring systems
  • building automation installations
  • lighting systems



To download
Brand
Symbol
HDN-10012
Producer code
5904139605660
Series
input voltage AC
90-264VAC
output voltage DC (V)
12V
DC adjustment range
11~13V
output current (A)
7,1A
power (W)
85W
efficiency
89%
mains frequency range
47/53Hz
permissible temperature range
0º~+40ºC
IP rating
IP20
enclosure
plastik
dimensons
90x58x70mm
weight
240g
