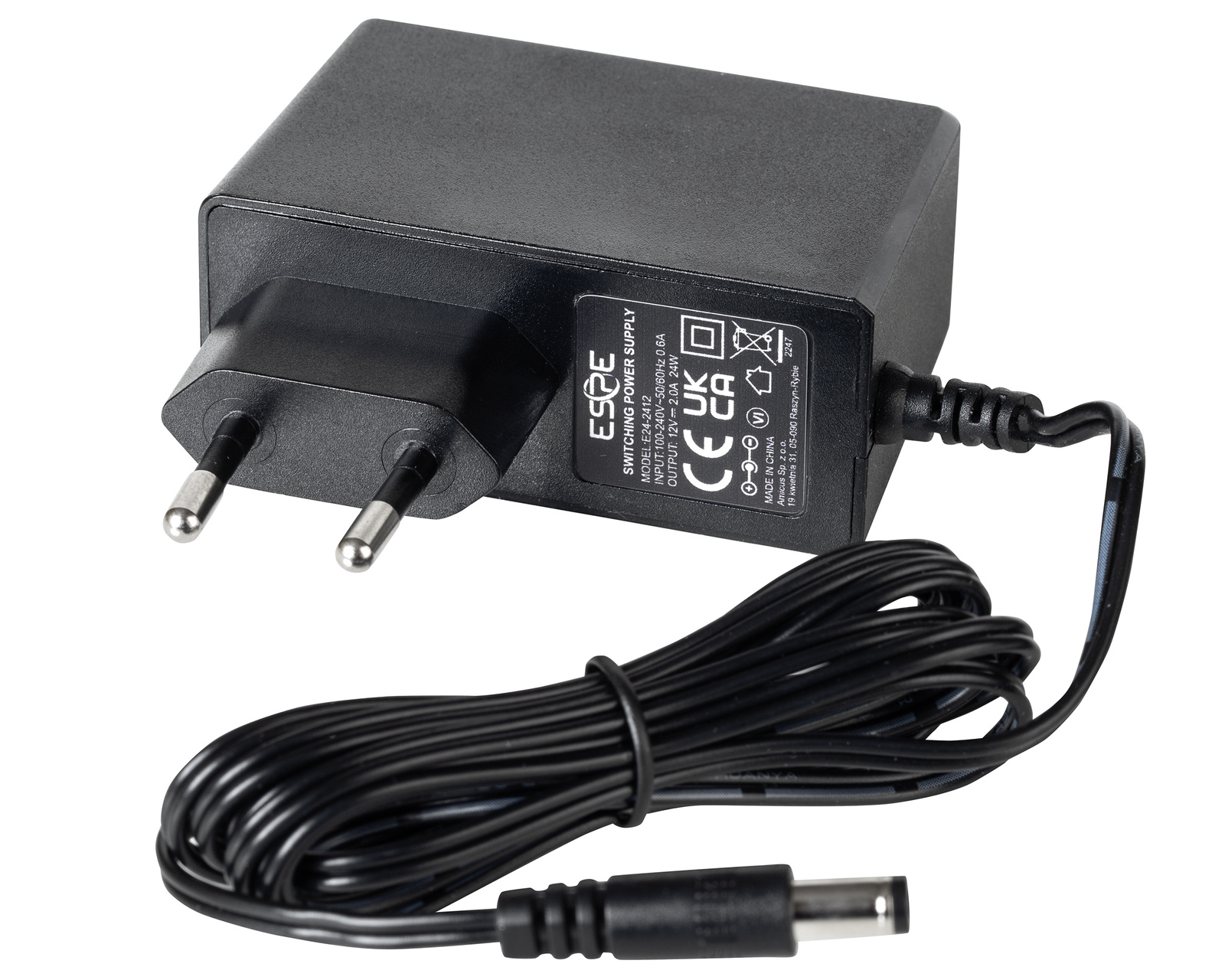

POWER SUPPLY FOR SEAGATE EXTERNAL DRIVE SRD00F2
SPECIFICATIONS:
- input voltage range: 100-240 VAC
- range mains supply voltage frequency: 47-63 Hz
- maximum inrush current: 50 A
- maximum allowable current consumption: 0.6 A
- Power consumption no-load: 0.085 W
- Restricted output voltage: 12 V
- Restricted output power: 24 W
- Restricted load current: 2 A
- average efficiency during operation: over 87%
- energy efficiency class: DoE Level VI, ErP
- input: over-voltage (OVP), under-voltage
- output: overcurrent (OCP), short-circuit (SCP), overvoltage (OVP): OCP (105-150%) SCP, OVP (32 V)
- automatic return to operation once the cause of the error has ceased
- thermal protection
- guaranteed insulation voltage strength of 3 kVAC (input to output)
- minimum insulation resistance: 100MΩ
- Galvanic insulation class: 2
- Safety compliance: EN63268
- compliance with standards in terms of: EMC EN55032 Class B EN61000-4
- approval marks: RoHS, CE
- operation temperature range: -20 to 40ºC
- housing: black ABS plastic
- output cable length: 1.5m
- sizes: 70x30x64 mm
- input connection: EU plug
Why you should choose our power supply for your music device:
- the power supplies we present are tested with regard to the technical parameters of the specific device
- our power supplies do not cause interference with music devices - they do not affect sound quality and do not cause humming
- M.T.B.F. : 50000h (average time the appliance can operate without interruption (failure))!
- our power supplies feature the following protections to ensure the safety of you and your environment: overvoltage (OV), short circuit (SC), overload (OC)
- adapted to the requirements of Directive 2002/95/EC of 27 January 2003 on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS), which came into force on 1 July 2006.
