DIN rail power supply 48V 5A 240W YINGJIAO

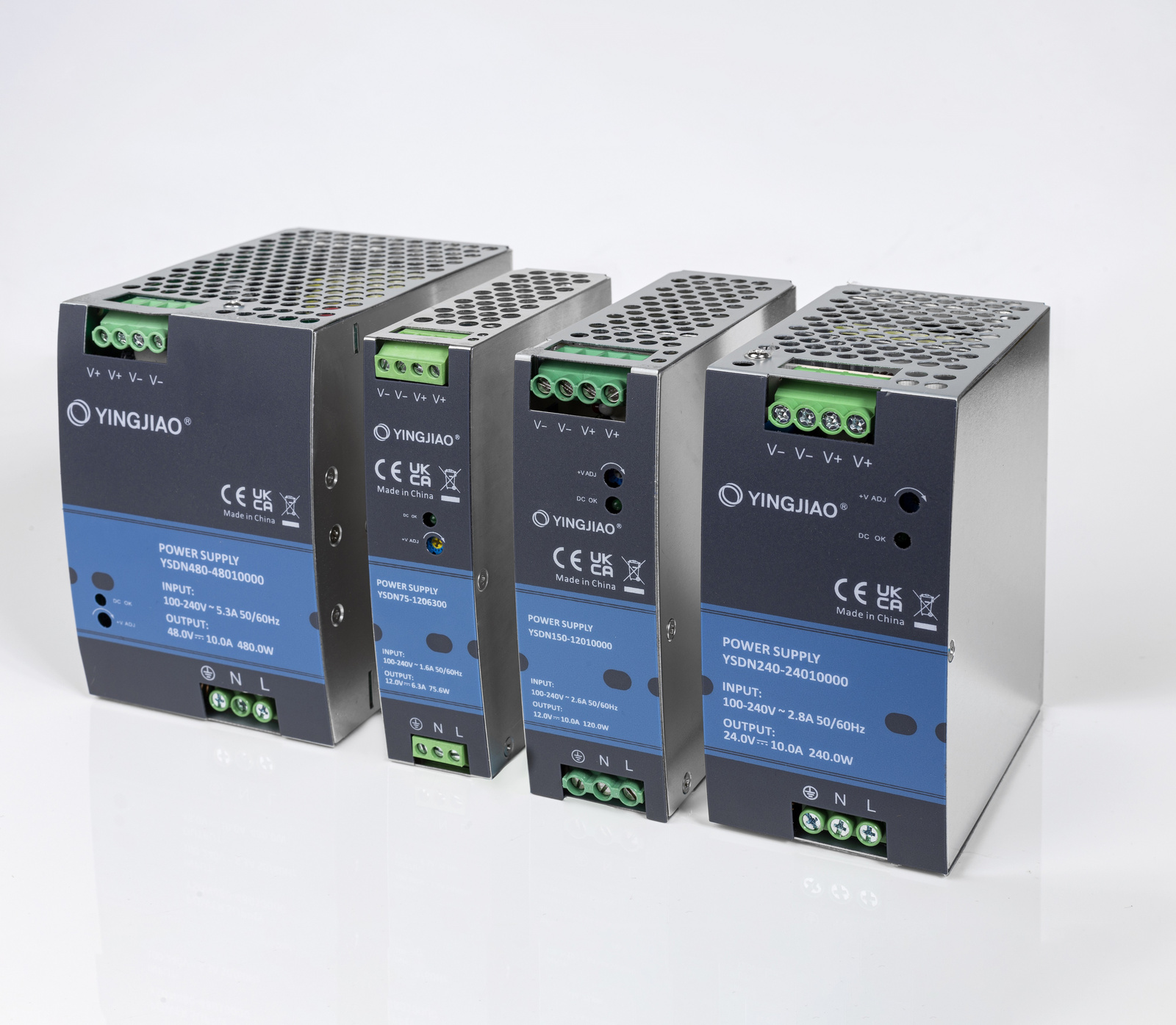

A series of industrial 12 and 24 V DIN rail power supplies in a robust metal housing with features such as DC voltage regulation via potentiometer and a DC OK output LED. These power supplies are designed for a wide range of applications in industrial automation systems and control systems. They are single-phase units with high efficiency and operate over a wide temperature range. The power supplies have a built-in set of protection circuits against short-circuit, overload, overheating and bad voltage levels. They provide a high MTBF and a high degree of safety. They comply with international standards.
SPECIFICATION:
- input voltage range: 100~264VAC; 120~370VDC
- Frequency range of mains supply voltage: 50-60 H
- Control type: CV - constant output voltage
- Rated output voltage: 48 V
- output voltage trimmer control: 46-55 V
- Rated output power: 240 W
- rated load current 5 A
- max. output voltage ripple: 150mVp-p
- Energy conversion efficiency: greater than 89%
- Operating temperature range: -20ºC to +70ºC
- output protection: overcurrent protection (OCP), short circuit protection (SCP), overvoltage protection (OVP)
- input protection: overvoltage (OVP), undervoltage (UVP)
- dimensions: 63x125x113 mm
- weight: 880 g
- enclosure: IP20
- DIN rail mounting TS-35
CHARACTERISTICS:
- robust metal housing
- DC OK LED indication
- high energy conversion efficiency
- low ripple and excellent stabilisation
- wide operating temperature range
- dual output terminals
To download
Brand
Symbol
YSDN240-48005000
Producer code
5904139606513
Series
input voltage AC
100~264VAC; 120~370VDC
output voltage DC (V)
48V
DC adjustment range
46-55 V
output current (A)
5A
power (W)
240W
efficiency
89%
częstotliwość
50/60 Hz
permissible temperature range
-20ºC...+70ºC
IP rating
IP20
enclosure
plastik
dimensons
63x125x113 mm
weight
880 g
