DIN rail power supply 5V 10A 50W YINGJIAO

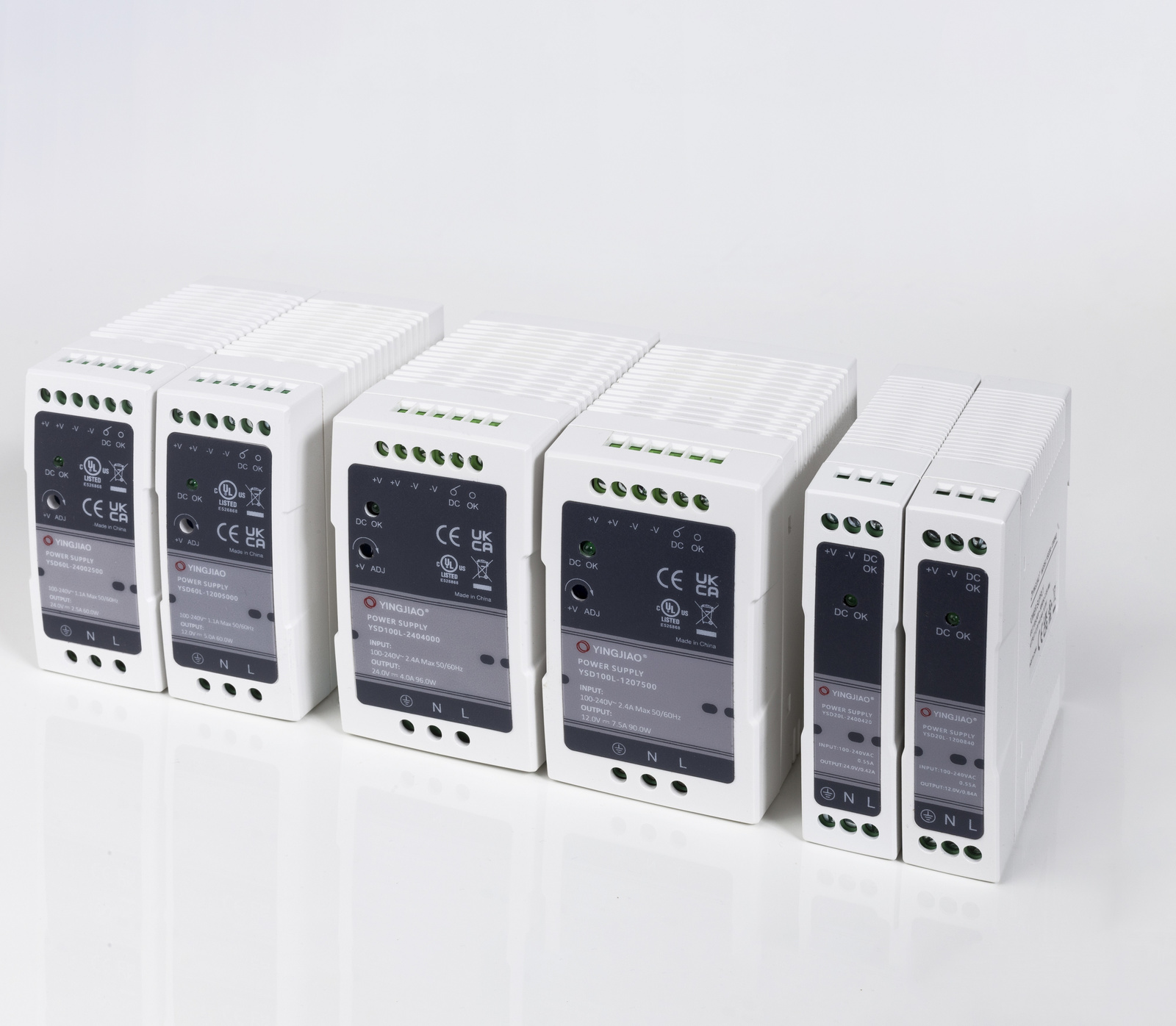

YSD-L is a series of DIN-rail industrial power supplies with 12 V and 24 V output voltages in a plastic enclosure with features such as DC voltage regulation via potentiometer, DC OK signal output and reinforced isolation. The power supplies have a built-in set of protection circuits against short-circuit, overload and excessive temperature and bad voltage levels. They provide a high MTBF and a high degree of safety. They comply with international standards. They are designed for wide application in industrial automation systems and control systems.
SPECIFICATIONS:
- input voltage range: 100~264VAC; 120~370VDC
- Frequency range of mains supply voltage: 50/60 Hz
- Control type: CV - constant output voltage
- Rated output voltage: 5V
- Rated output power: 50 W
- Rated load current: 10 A
- max. output voltage ripple 80mVp-p
- Energy conversion efficiency: greater than 78%
- Operating temperature range: -20ºC to +60ºC
- output protection: overcurrent protection (OCP), short circuit protection (SCP), overvoltage protection (OVP)
- input protection: overvoltage (OVP), undervoltage (UVP)
- dimensions: 41x100x92 mm
- weight: 270 g
- enclosure: IP20
- DIN rail mounting TS-35
- DC OK signal output and LED indicating PSU operating status
CHARACTERISTICS:
- compact slim housing
- DC OK LED and signal output
- high energy conversion efficiency
- low ripple and excellent stabilisation
- wide operating temperature range
Brand
Symbol
YSD60L-05010000
Producer code
5904139607909
Series
input voltage AC
100~264VAC; 120~370VDC
output voltage DC (V)
5V
DC adjustment range
5-6 V
output current (A)
10A
power (W)
50W
efficiency
78%
częstotliwość
50/60 Hz
permissible temperature range
-20ºC...+60ºC
IP rating
IP20
enclosure
plastik
dimensons
41x100x92 mm
weight
270 g
