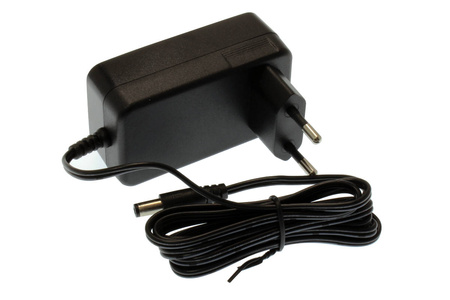

Stabilized power supply 12V 2A 24W PROCONS PRO2412W2E

STABILIZED POWER SUPPLY 12V 2A 24W PROCONS PRO2412W2E

The PRO2412W2E is a small and efficient 24-watt plug-in power supply for universal use. Its design is based on high-quality electronic components that allow for continuous, long-term operation in all conditions. It is reliable, fully secured and stable. It provides high efficiency and excellent technical parameters.

SPECIFICATION:

input parameters:

• input voltage range: 100-240 VAC
• mains voltage frequency range: 47-63 Hz
• maximum inrush current: 60 A
• maximum allowable current consumption: 0.6 A
• no-load power consumption: 0.075 W

output parameters:

• rated output voltage: 12V
• rated output power: 24W
• rated load current: 2 A
• average efficiency during operation: above 86.5%
• energy efficiency class: DoE Level VI, ErP

security:

• input: overvoltage (OVP), undervoltage
• output: overcurrent (OCP), short circuit (SCP), over voltage (OVP): OCP (105-150%) SCP, OVP (32V)
• automatic return to work after the cause of the error has ceased to exist
• Thermal protection

safety and legal requirements:

• guaranteed insulation voltage 3 kVAC (input to output)
• minimum insulation resistance: 100MΩ
• galvanic isolation class: 2
• compliance with safety standards: EN60950
• compliance with standards in the scope of: EMC EN55032 Class B, EN61000-4
• acceptance marks: RoHS, CE

execution and work parameters:

• operating temperature range: from -5 to 40ºC
• lifetime of M.T.B.F .: 30 thousand h
• warranty: 2 years
• housing: black ABS plastic
• output cable length: 1.5 m
• dimensions: 76x43x49 mm
• weight: 133 g
• Input connection: EU plug
