203,00 zł
/ szt. incl. VAT
Easy return of products within 14 days from the date of purchase without giving reasons
Switching power supply for LED lighting systems IP67 HLG-185H-24A Mean Well
Switching power supply for LED lighting systems IP67 HLG-185H-24A Mean Well

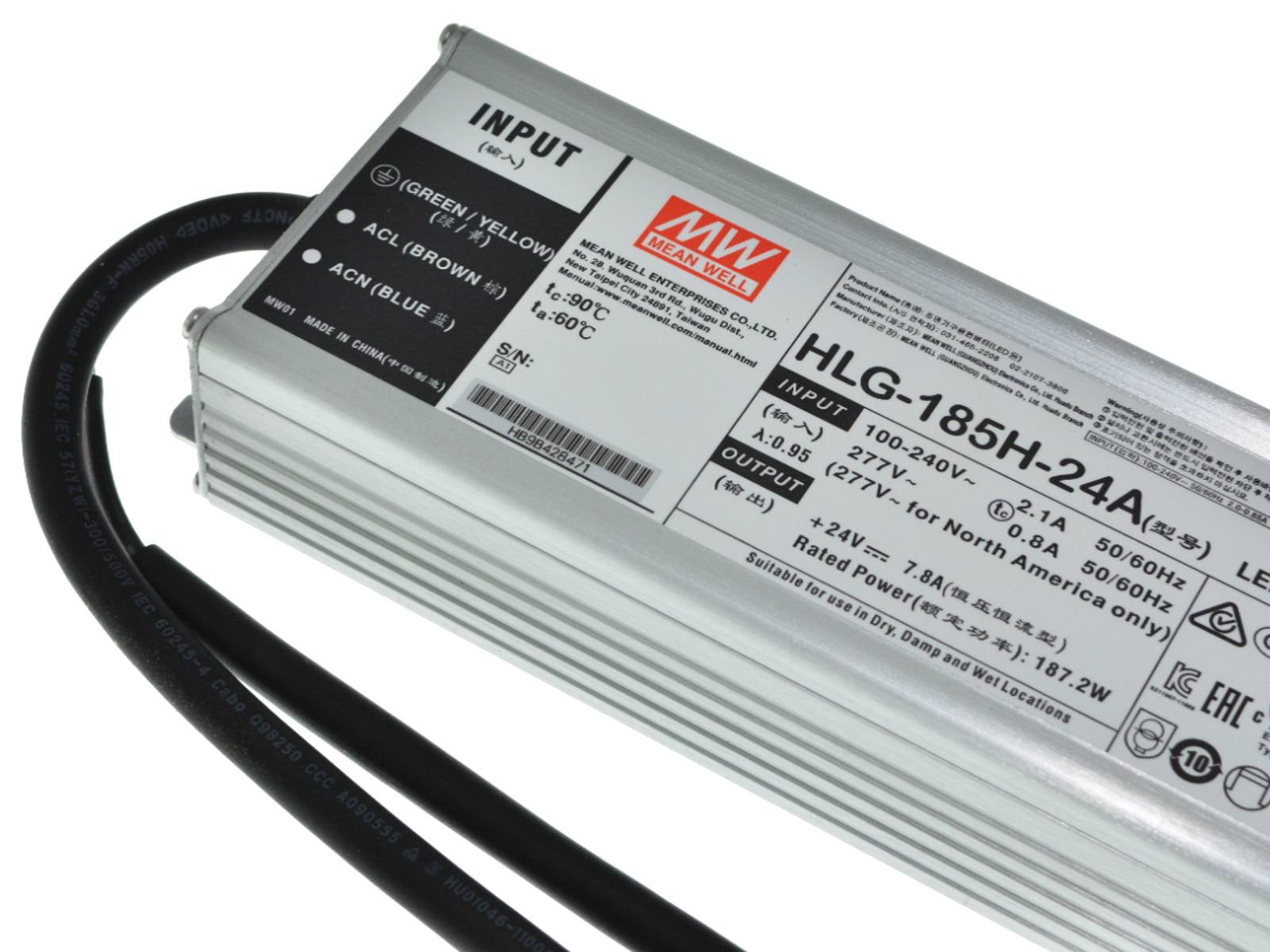

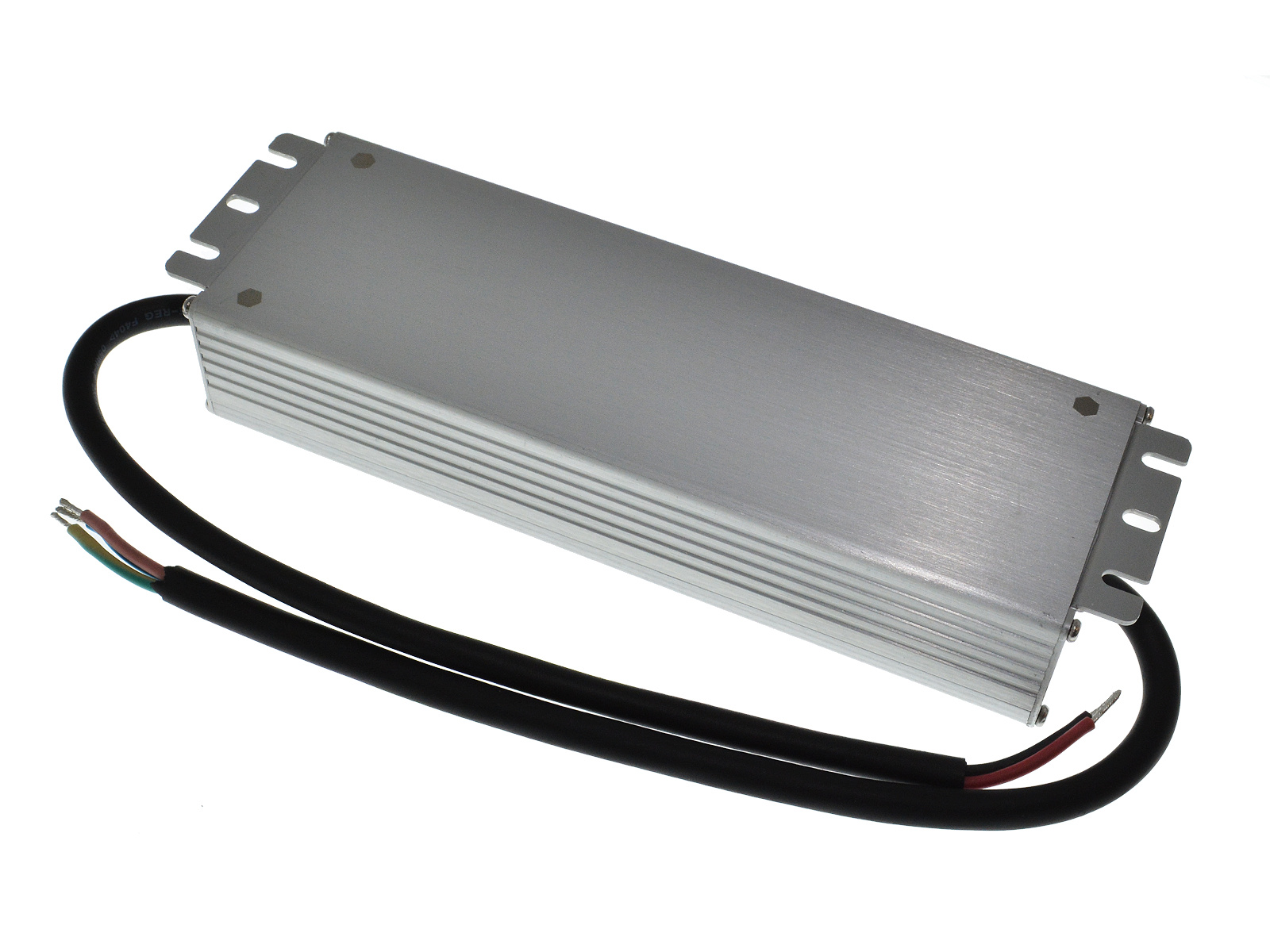

Switching power supply for LED lighting systems HLG-185H-24A Mean Well



Technical data:

  • Model - HLG-185H-24A
  • Output voltage 22 ... 27V DC, 24V DC
  • Output current 3.9 ... 7.8A
  • Power 187.2W
  • +/- 1% tolerance
  • Interference 150mV
  • 93.5% efficiency
  • Cable length 300mm
  • Dimensions 228 x 68 x 38.8mm

Specification:

  • supply voltage: 90-305VAC; 127-431VDC
  • hermetic metal housing in accordance with the IP67 / IP65 standard
  • built-in active PFC function
  • 4KV surge immunity in accordance with IEC61000-4-5
  • short circuit, overcurrent, overvoltage and thermal protection
  • regulation of the output voltage with a potentiometer in version A
  • regulation of the output current with a potentiometer A
  • 3in1 dimming function in B version models (1 ~ 10VDC, PWM, resistor)
  • cooling with open air circulation
  • working temperature -40 ~ + 70 ° C
  • compliance with a number of standards and certificates
  • 5-year warranty
Producer
Product code
HLG-185H-24A
Series
power
187W
output voltage
24V
output current
7,8A
