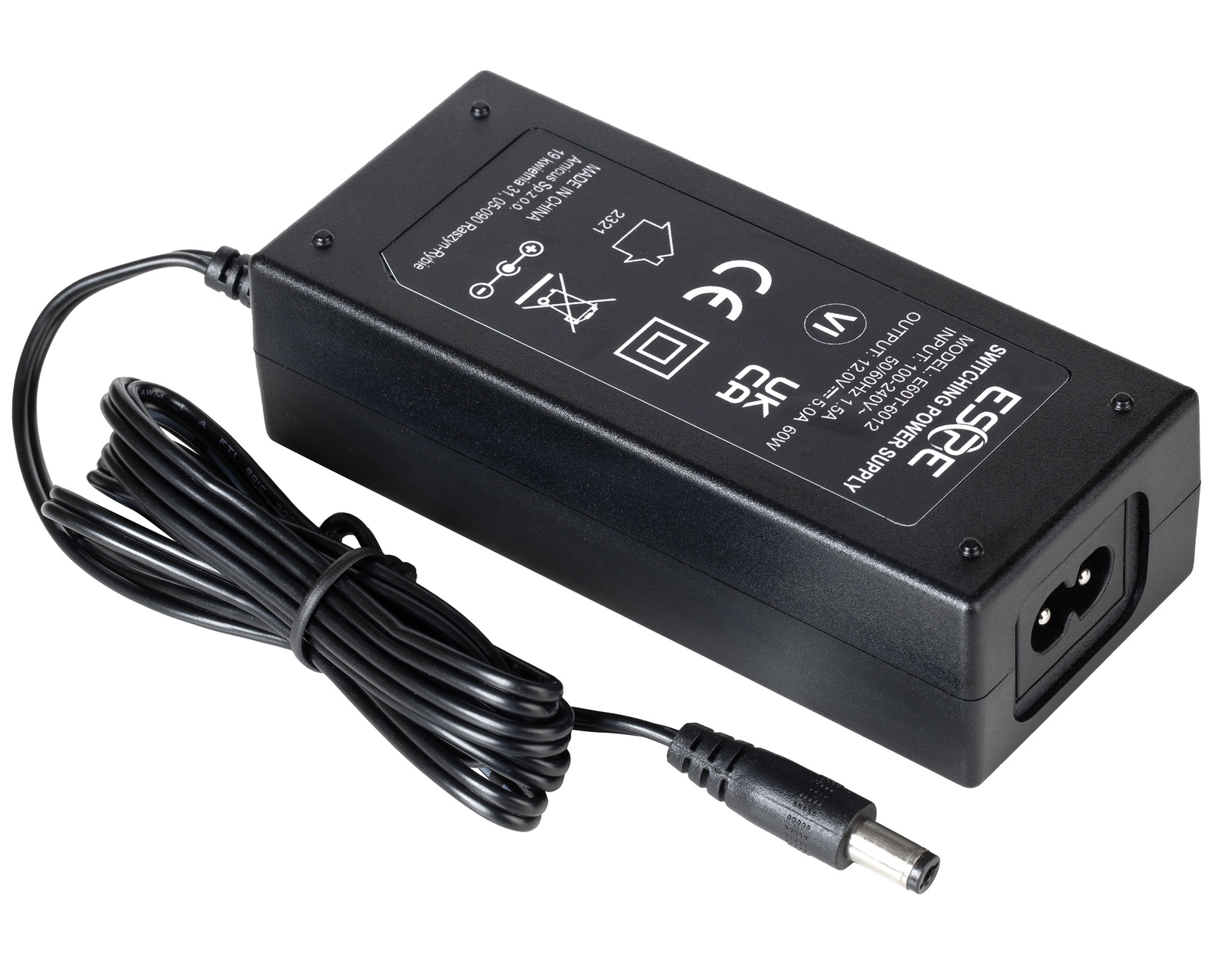

Desktop power supply ESPE 12V 5A 60W center negative | E6012C8
Desktop power supply ESPE 12V 5A 60W center negative | E6012C8
Desktop power supply ESPE 12V 5A 60W center negative | E6012C8
Desktop power supply ESPE 12V 5A 60W center negative | E6012C8

Desktop power supply ESPE 12V 5A 60W center negative | E6012C8

polarization
72,99 PLN
incl. VAT / pcs
Regular price / pcs
of
Możesz kupić także poprzez:
28 days for free returns
This product is not available in a stationary store
Safe shopping
Product sold out
You will receive an email notification from us when the product is available again.
Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Contact details entered above are not used to send newsletters or other advertisements. When you sign up to be notified, you hereby agree to receive only a one-time notification of a product re-availability.



The E6012C8 is a small and powerful 60-watt desktop power supply for universal use. Its design is based on high-quality electronic components that allow continuous, long-term operation in all conditions. It is reliable, fully protected and stable. It provides high efficiency and excellent technical parameters



Specification:

  • input parameters:
    • rated input voltage range: 100-240 VAC
    • permissible input voltage range: 90-264 VAC
    • frequency range of mains supply voltage: 47-63 Hz
    • no-load power consumption: less than 0.1 W
  • output parameters:
    • Rated output voltage: 12 V
    • rated output power: 60 watts
    • rated load current: 5 A
    • Energy conversion efficiency:  over 88%
  • additional information:
    • working temperature range: from -5ºC to +40ºC
    • output protection: overcurrent protection (OCP), short circuit protection (SCP), overvoltage protection (OVP)
    • input protection: over-voltage (OVP), under-voltage (UVP)
    • MTBF: 30 thousand h
    • dimensions: 133x50x31 mm
    • output cable length: 1.1m
    • weight: 225g
    • reversed polarity (-) in the middle

No power cord included!

To download
Brand
Symbol
E6012C8-CN
Series
input voltage AC
100-240VAC
output voltage DC (V)
12V
output current (A)
5A
power (W)
60W
polarization
(-) in the middle
efficiency
88%
mains frequency range
47/63Hz
permissible temperature range
-5º~+40ºC
enclosure
tworzywo ABS
dimensons
133x50x31mm
weight
225g
