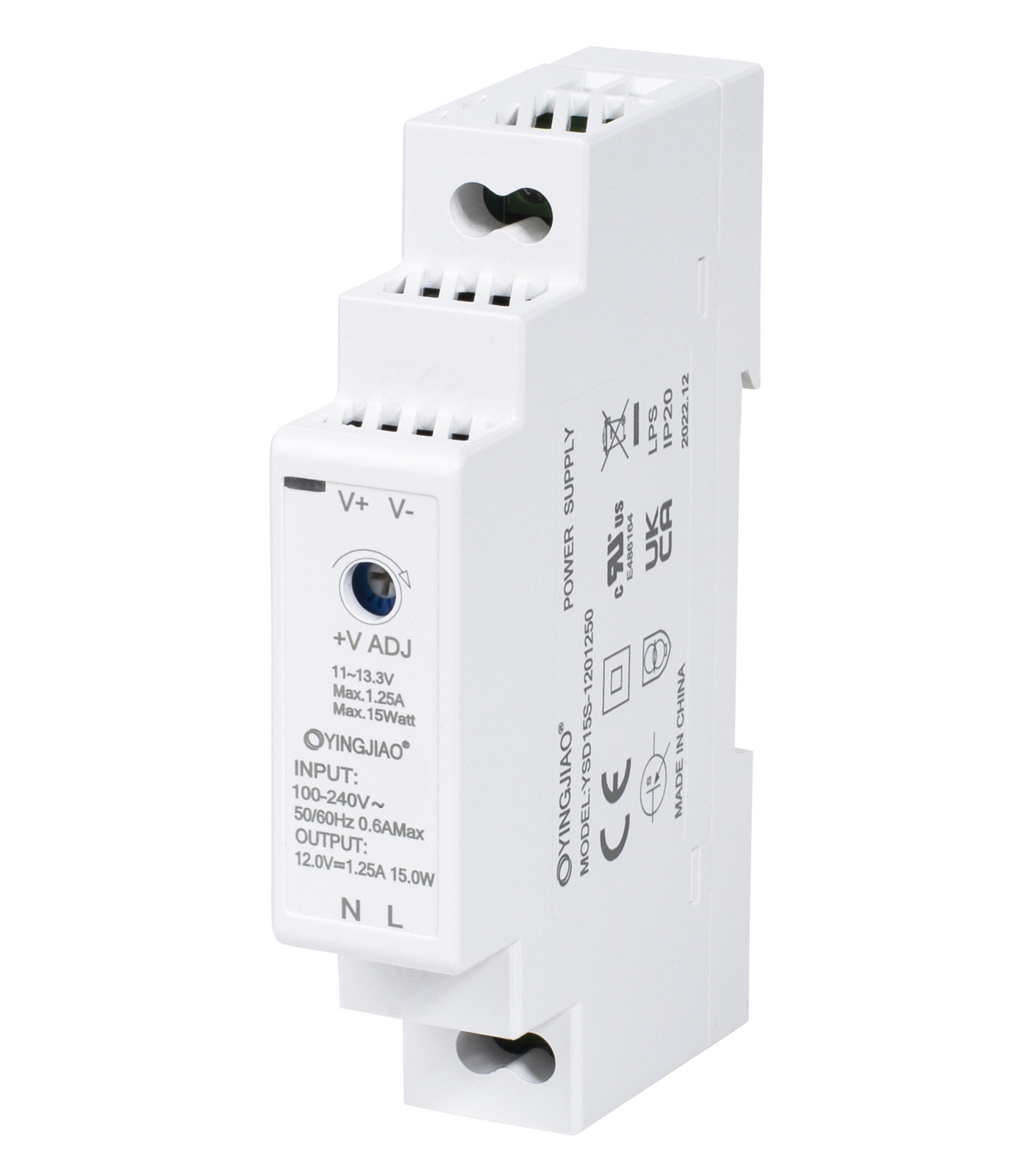

DIN rail power supply 12V 1,25A 15W YINGJIAO

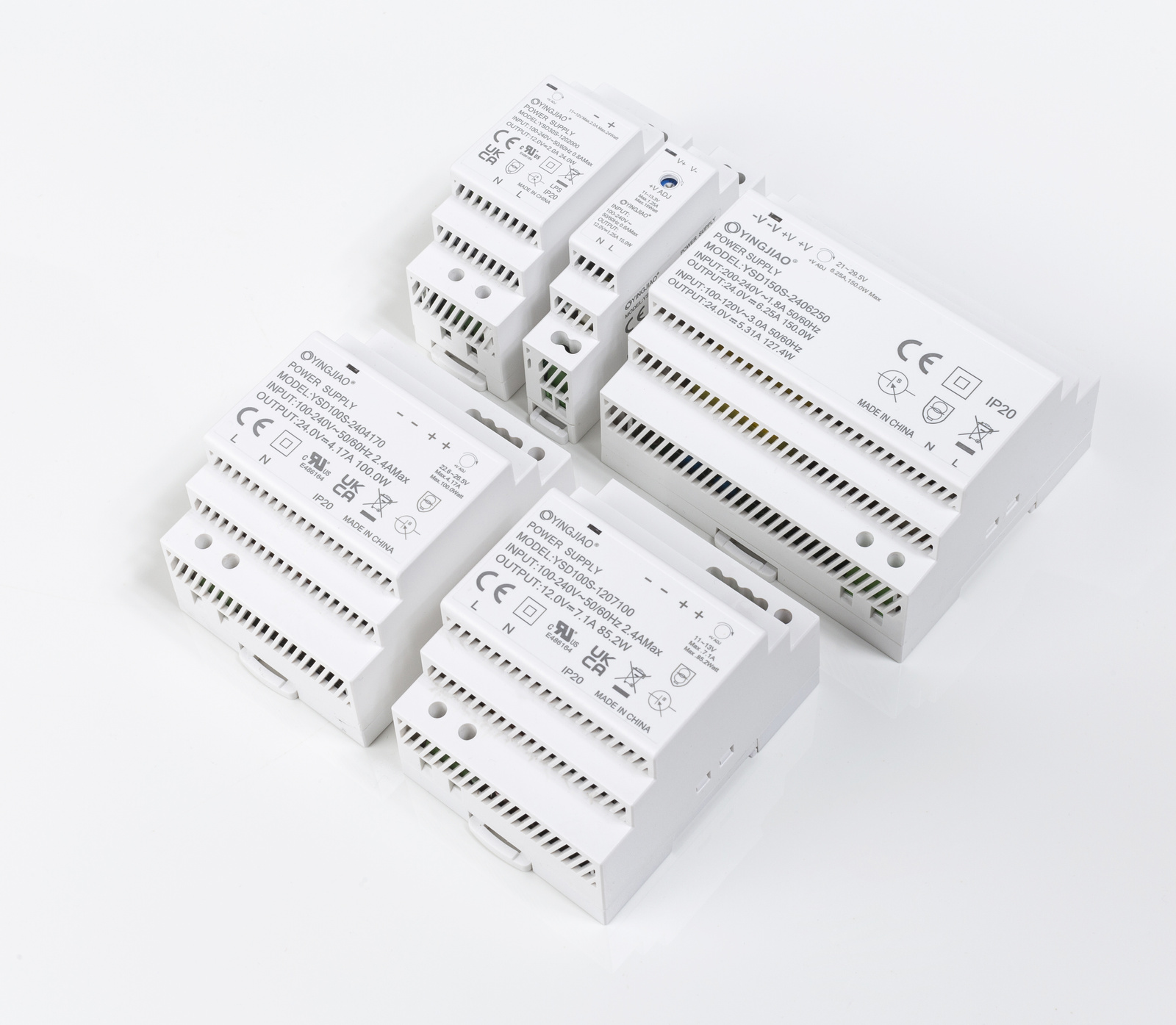

YSD-S is a series of DIN-rail industrial power supplies with 12 V and 24 V output voltages in a plastic enclosure with features such as DC voltage regulation by potentiometer and Class II insulation. The power supplies have a built-in set of protection circuits against short-circuits, overloads and excessive temperatures and bad voltage levels. They provide a high MTBF and a high degree of safety. They comply with international standards. They are designed for widespread use in industrial automation systems and control systems.
SPECIFICATIONS:
- input voltage range 100~240VAC
- Frequency range of mains supply voltage: 50-60 Hz
- no-load power consumption: 150mW
- Control type: CV - constant output voltage
- Rated output voltage: 12 V
- output voltage trimmer adjustment: 11-13.3 V
- Rated output power: 15W
- Rated load current: 1,25 A
- max. output voltage ripple: 120mVp-p
- energy conversion efficiency: greater than 85%
- Operating temperature range: -10ºC to +40ºC
- output protection: overcurrent protection (OCP), short circuit protection (SCP), overvoltage protection (OVP)
- input protection: overvoltage (OVP), undervoltage (UVP)
- dimensions: 18x90x58 mm
- weight: 70g
- enclosure: IP20
CHARACTERISTICS:
- compact slimline housing
- LED signalling of output voltage
- dual output terminals
- high energy conversion efficiency
- low ripple and excellent stabilisation
- wide operating temperature range
To download
Brand
Symbol
YSD15S-1201250
Producer code
5904139606612
Series
input voltage AC
100-240VAC
output voltage DC (V)
12V
DC adjustment range
11-13,3 V
output current (A)
1,25A
power (W)
15W
efficiency
85%
częstotliwość
50/60 Hz
permissible temperature range
-10ºC...+40ºC
IP rating
IP20
enclosure
plastik
dimensons
18x90x58 mm
weight
70g
