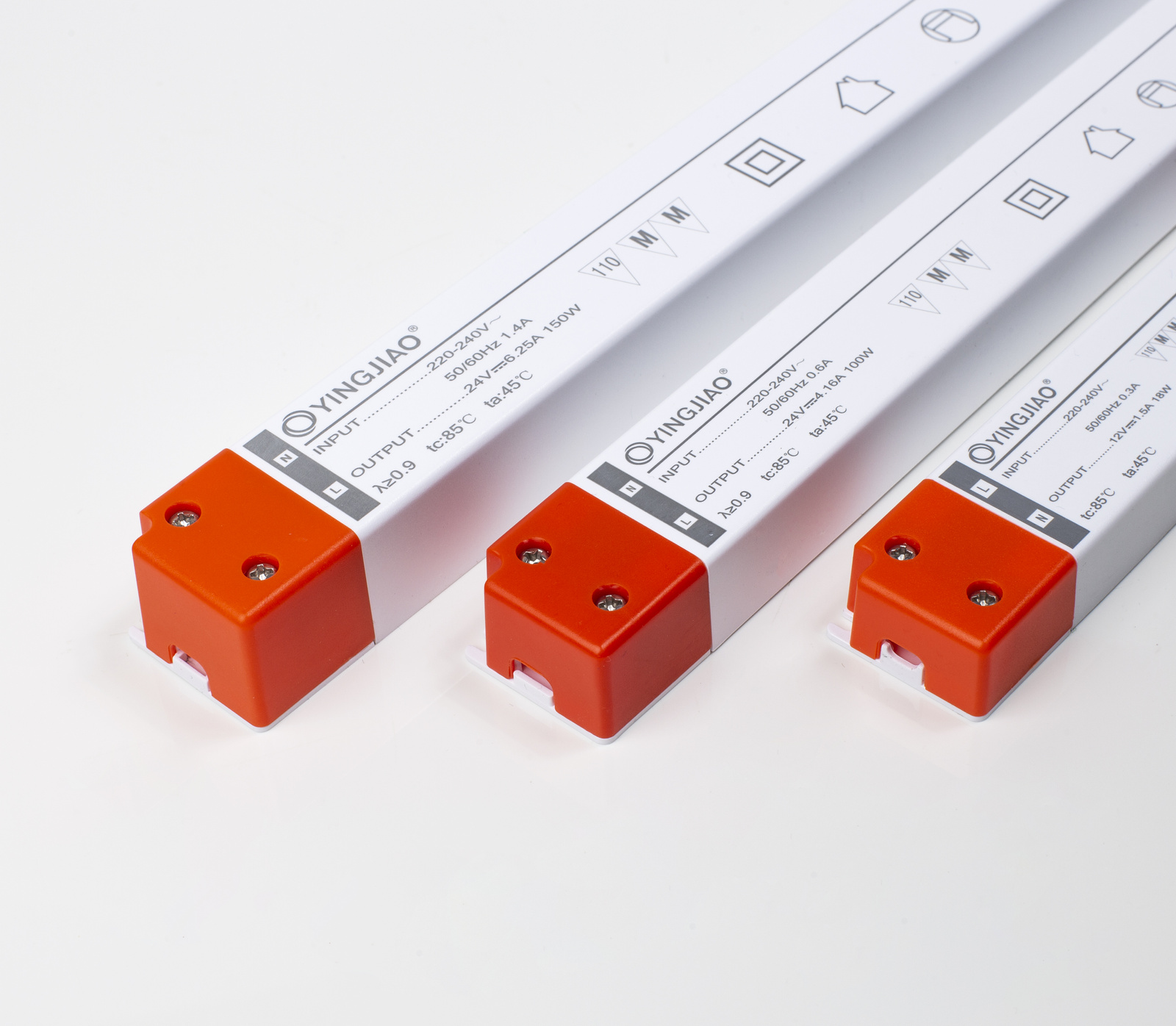

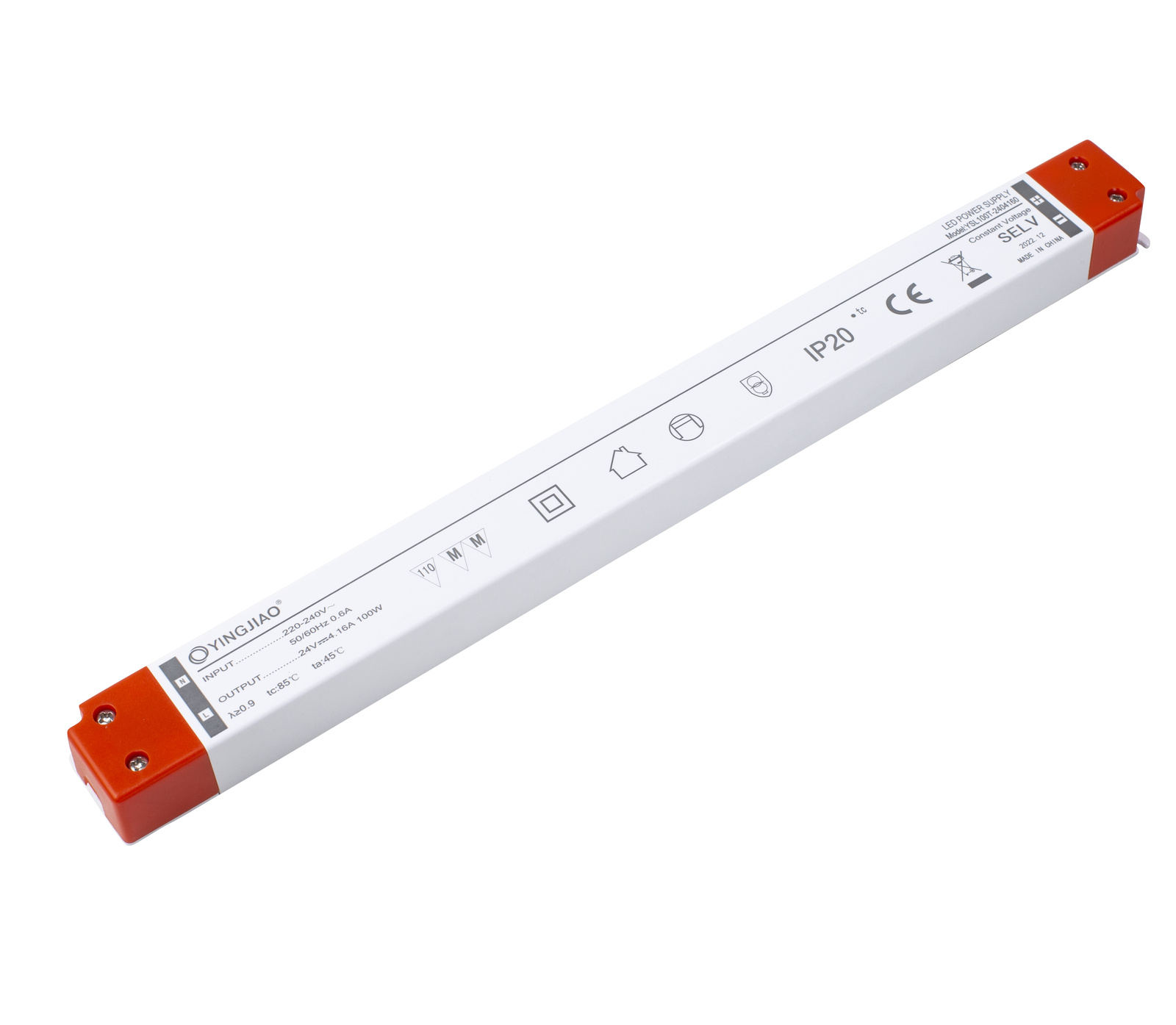

Power supply for LED lighting 24V 6.25A 150W YINGJIAO
Power supply for LED lighting 24V 6.25A 150W YINGJIAO
Power supply for LED lighting 24V 6.25A 150W YINGJIAO
Power supply for LED lighting 24V 6.25A 150W YINGJIAO

Power supply for LED lighting 24V 6.25A 150W YINGJIAO

174,99 PLN
incl. VAT / szt.
of
Express checkout 1-Click(without registration)
28 days for free returns
Safe shopping
Free delivery to parcel machinesMore information
Smile - deliveries from online stores when ordered from 50,00 PLN are for free.
You buy and delivery is free!
deliveries from online stores are free when you order 50,00 PLN are for free.
Free delivery includes parcel delivery to a parcel machine

Zasilacze YSL-T to wysokiej klasy jednostki z wyjściem stałonapięciowym (CV) do aplikacji LED. Ich cechą szczególną jest wydłużona konstrukcja obudowy, która jest jednocześnie wąska i niska. W ramach serii dostępne są wersje o napięciu wyjściowym 12 i 24 V i mocy wyjściowej od 15 do 100 watów. Zasilacze pracują z napięciem wejściowym 220-240VAC i mają wbudowany aktywny korektor PFC.



SPECYFIKACJA:

  • zakres napięć wejściowych: 200-240VAC
  • zakres częstotliwości sieciowego napięcia zasilającego: 50/60 Hz
  • znamionowe napięcie wyjściowe: 24 V
  • znamionowa moc wyjściowa: 150 W
  • znamionowy prąd obciążenia: 6,25 A
  • maks. tętnienia napięcia wyjściowego: 240mVp-p
  • sprawność konwersji energii: powyżej 92%
  • zabezpieczenia wyjścia: nadprądowe (OCP), zwarciowe (SCP), nadnapięciowe (OVP)
  • zabezpieczenia wejścia: nadnapięciowe (OVP), podnapięciowe (UVP)
  • ochrona przed przegrzaniem
  • współpracuje ze ściemniaczem
  • wymiary: 360x32x24 mm
  • waga: 150 g



CHARAKTERYSTYKA:

  • wydłużona płaska i wąska obudowa
  • duża sprawność konwersji energii
  • mały prąd rozruchu
  • mały poziom tętnień i doskonała stabilizacja
  • szeroki zakres temperatur pracy -20 … +50ºC.
  • łatwa w montażu obudowa
  • w pełni zabezpieczony układ elektroniczny
  • zgodność z normami międzynarodowymi



APLIKACJE:

  • systemy oświetlenia budynkowego
  • reklamy świetlne
  • oświetlenie dekoracyjne
  • oświetlenie przemysłowe



To download
Symbol
YSL150T-2406250
Producer code
5904139606735
Series
input voltage AC
200-240VAC
output voltage DC (V)
24V
output current (A)
6,25A
power (W)
150W
efficiency
92%
częstotliwość
50/60 Hz
permissible temperature range
-20ºC...+50ºC
IP rating
IP20
enclosure
plastik
dimensons
360x32x24 mm
weight
150g
