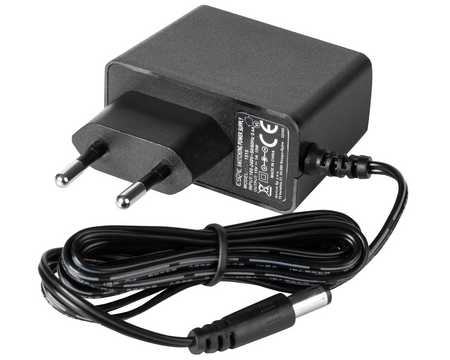

Wall-mounted plug-in power supply unit ESPE 15V 1A 15W center negative | PRO1515W2E
Wall-mounted plug-in power supply unit ESPE 15V 1A 15W center negative | PRO1515W2E
Wall-mounted plug-in power supply unit ESPE 15V 1A 15W center negative | PRO1515W2E
Wall-mounted plug-in power supply unit ESPE 15V 1A 15W center negative | PRO1515W2E
Wall-mounted plug-in power supply unit ESPE 15V 1A 15W center negative | PRO1515W2E
Wall-mounted plug-in power supply unit ESPE 15V 1A 15W center negative | PRO1515W2E

Wall-mounted plug-in power supply unit ESPE 15V 1A 15W center negative | PRO1515W2E

polarization
31,99 PLN
incl. VAT / pcs
Regular price / pcs
of
You can also buy using:
28 days for free returns
Find out in which store you can check the product and buy it right away
Wall-mounted plug-in power supply unit ESPE 15V 1A 15W center negative | PRO1515W2E
Wall-mounted plug-in power supply unit ESPE 15V 1A 15W center negative | PRO1515W2E
polarization:(-) in the middle
Safe shopping
Product sold out
You will receive an email notification from us when the product is available again.
Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Contact details entered above are not used to send newsletters or other advertisements. When you sign up to be notified, you hereby agree to receive only a one-time notification of a product re-availability.



SPECIFICATION:

  • input parameters:
    • input voltage range 100-240 VAC
    • Frequency range of mains supply voltage:  47-63 Hz
    • No-load power consumption: less than 0,075 W
  • output parameters:
    • Rated output voltage: 15 V
    • Rated output power: 15 W
    • rated load current 1 A
    • Energy efficiency class: Energy Star Compliance Level VI .
    • energy conversion efficiency: 83%
  • additional information:
    • operating temperature range: -0ºC to +40ºC
    • output protection:  overcurrent (OCP), short-circuit (SCP), overvoltage (OVP)
    • automatic return to operation once the cause of the fault has ceased
    • MTBF: 30 h
    • dimensions: 77x28.5x44.5 mm
    • weight: 105 g
    • housing: black ABS plastic

MECHANICAL DESIGN

BLOCK DIAGRAM OF THE POWER SUPPLY



To download
Brand
Symbol
PRO1515W2E-CN
Producer code
2,1x5,5 mm5904139607787
Series
input voltage AC
100-240VAC
output voltage DC (V)
15V
output current (A)
1A
power (W)
15W
polarization
(-) in the middle
efficiency
83%
mains frequency range
47/63Hz
permissible temperature range
0º~+40ºC
enclosure
tworzywo ABS
dimensons
77x28,5x44,5mm
weight
105g
