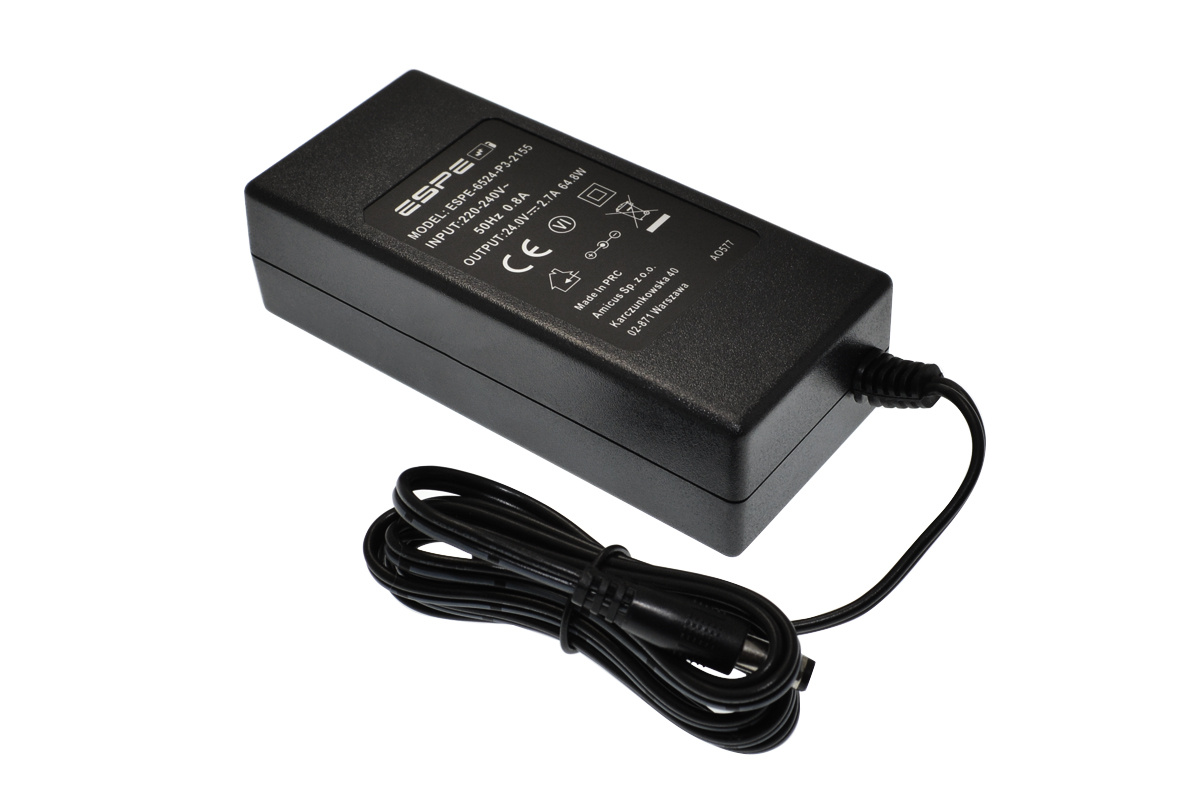

Desktop power supply ESPE 24V 2.7A 65W | ESPE-6524-P3
Desktop power supply ESPE 24V 2.7A 65W | ESPE-6524-P3
ESPE-6524-P3 is a small and efficient 65-watt desktop power supply with universal applications. Its design is based on high-quality electronic components that allow for continuous, long-term operation in all conditions. It is reliable, fully protected and stable. It provides high efficiency and excellent technical parameters.
Specification:
- input parameters:
- Rated input voltage range 100-240 VAC
- permissible input voltage range: 90-264 VAC
- frequency range of mains supply voltage: 47-63 Hz
- no-load power consumption: less than 0.15 W
- output parameters:
- Rated output voltage: 24 V
- Rated output power: 65 W
- Rated load current: 2.7 A
- energy conversion efficiency: greater than 89%
- additional information:
- operating temperature range: 0ºC to +40ºC
- output protection: overcurrent protection (OCP), short circuit protection (SCP), overvoltage protection (OVP)
- input protection: overvoltage (OVP), undervoltage (UVP)
- MTBF: 30 h
- wymiary: 116x52x33 mm
- output cable length: 1.4 m with a cross section of 0.82 mm2
- weight: 236 g
No power cable included!
To download
Brand
Symbol
ESPE-6524-P3
Producer code
2,1x5,5 mm5904139604441
2,5x5,5 mm5904139604427
1,7x4,0mm5904139604458
Series
input voltage AC
100-240VAC
output voltage DC (V)
24V
output current (A)
2,7A
power (W)
65W
polarization
(+) in the middle
efficiency
89%
mains frequency range
47/63Hz
permissible temperature range
0º~+40ºC
enclosure
tworzywo ABS
dimensons
116x52x33mm
weight
236g
