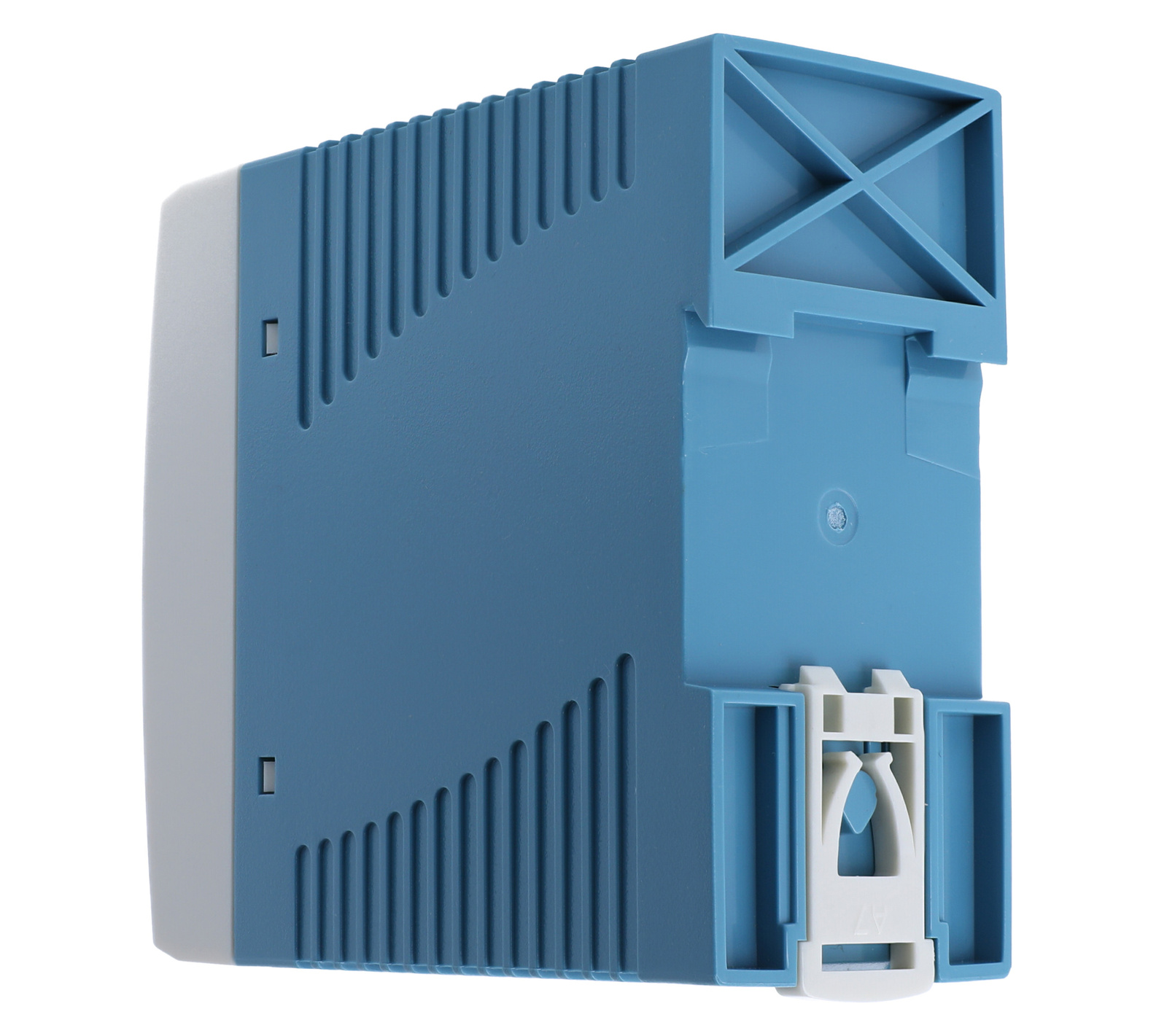

DIN rail power supply 24V 1.7A 40W MEAN WELL | MDR-40-24
DIN rail power supply 24V 1.7A 40W MEAN WELL | MDR-40-24
MEAN WELL MDR-40 switching power supplies, thanks to their slim housing, are used where space requirements play a significant role. Thanks to a wide range of power supplies (85-264VAC or 120-370VDC), they can be successfully used in industrial automation and telecommunications. The device is cooled by open air circulation, and the permissible operating temperature of the power supply is -20 ~ +70°C.
The device has a DC OK signal output, and an LED to indicate the operating status of the power supply. The MDR-40 series switching power supplies achieve up to 88% efficiency. The power consumed in no-load condition is <0.75W.
SPECIFICATION:
- power: 40 W
- output current: 1.7A
- output voltage: 24 V
- supply voltage: 85...264V AC, 120...370V DC
- electrical connection: terminal strip
- DIN assembly
- external dimensions: 40x90x100mm
- weight: 285 g
- number of outputs: 1
- protection: overload, overheating, overvoltage, short circuit
- efficiency: 88%
To download
Brand
Entity responsible for this product in the EU
MEAN WELL EUROPE N.V.More
Address:
Langs de Werf 8Postal code: 1185XTCity: AmstelveenCountry: NetherlandsPhone number: +31-20-758-6000E-mail: info@meanwell.eu
Symbol
MDR-40-24
Producer code
5904139600245
Series
input voltage AC
85-264VAC
output voltage DC (V)
24V
DC adjustment range
24~30V
output current (A)
1,7A
power (W)
40W
efficiency
88%
mains frequency range
47/63Hz
permissible temperature range
-20º~+70ºC
IP rating
IP20
enclosure
ABS plastic
dimensons
40x90x100mm
weight
285g
