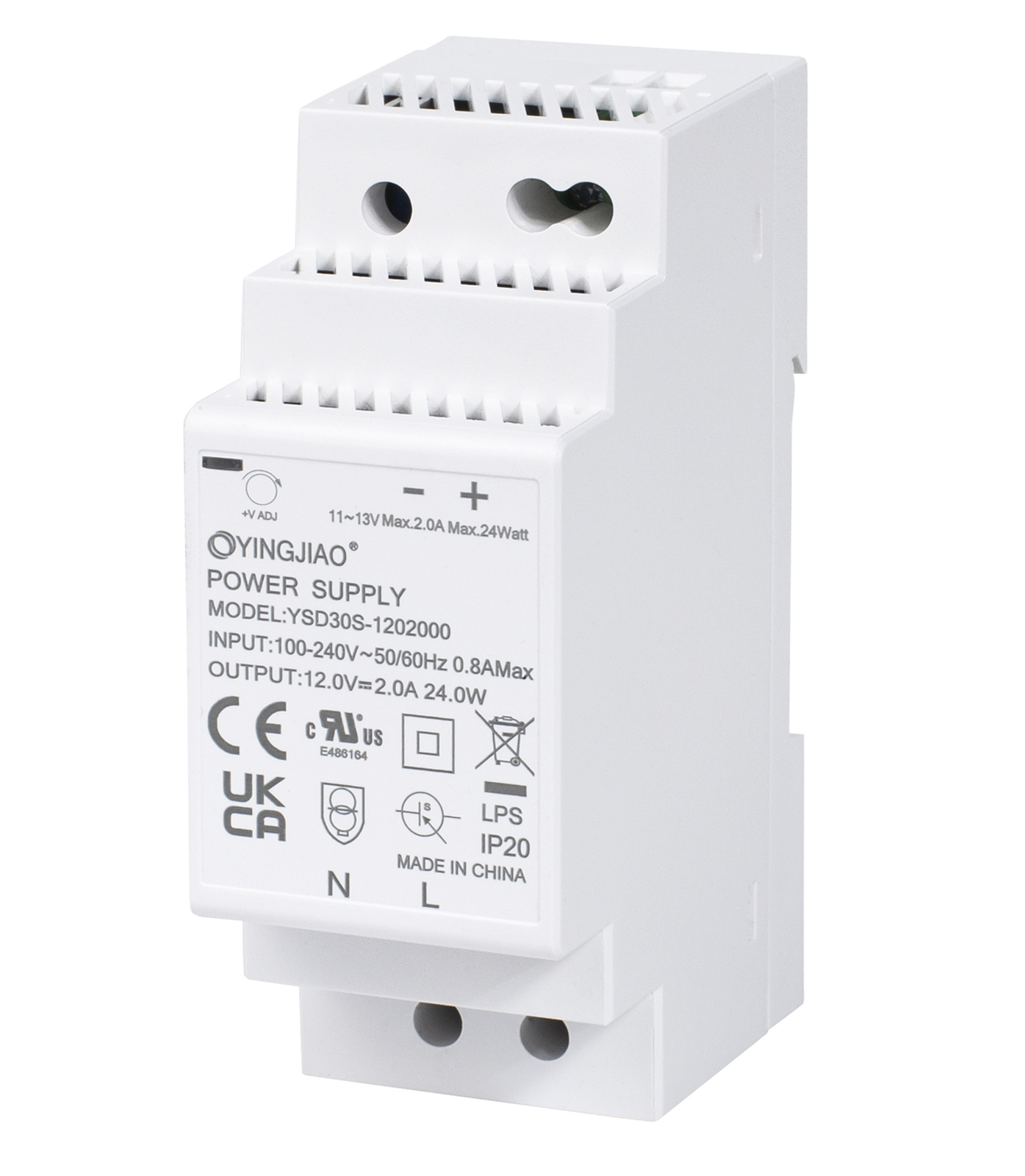

DIN rail power supply 12V 2A 24W YINGJIAO | YSD30S-1202000
DIN rail power supply 12V 2A 24W YINGJIAO | YSD30S-1202000
DIN rail power supply 12V 2A 24W YINGJIAO | YSD30S-1202000
DIN rail power supply 12V 2A 24W YINGJIAO | YSD30S-1202000

DIN rail power supply 12V 2A 24W YINGJIAO | YSD30S-1202000

57,99 PLN
incl. VAT / pcs
Lowest price in 30 days before discount: / pcs
Regular price: / pcs
of
You can also buy using:
28 days for free returns
This product is not available in a stationary store
Safe shopping
Free delivery to parcel machinesMore information
Smile - deliveries from online stores when ordered from 50,00 PLN are for free.
You buy and delivery is free!
deliveries from online stores are free when you order 50,00 PLN are for free.
Free delivery includes parcel delivery to a parcel machine

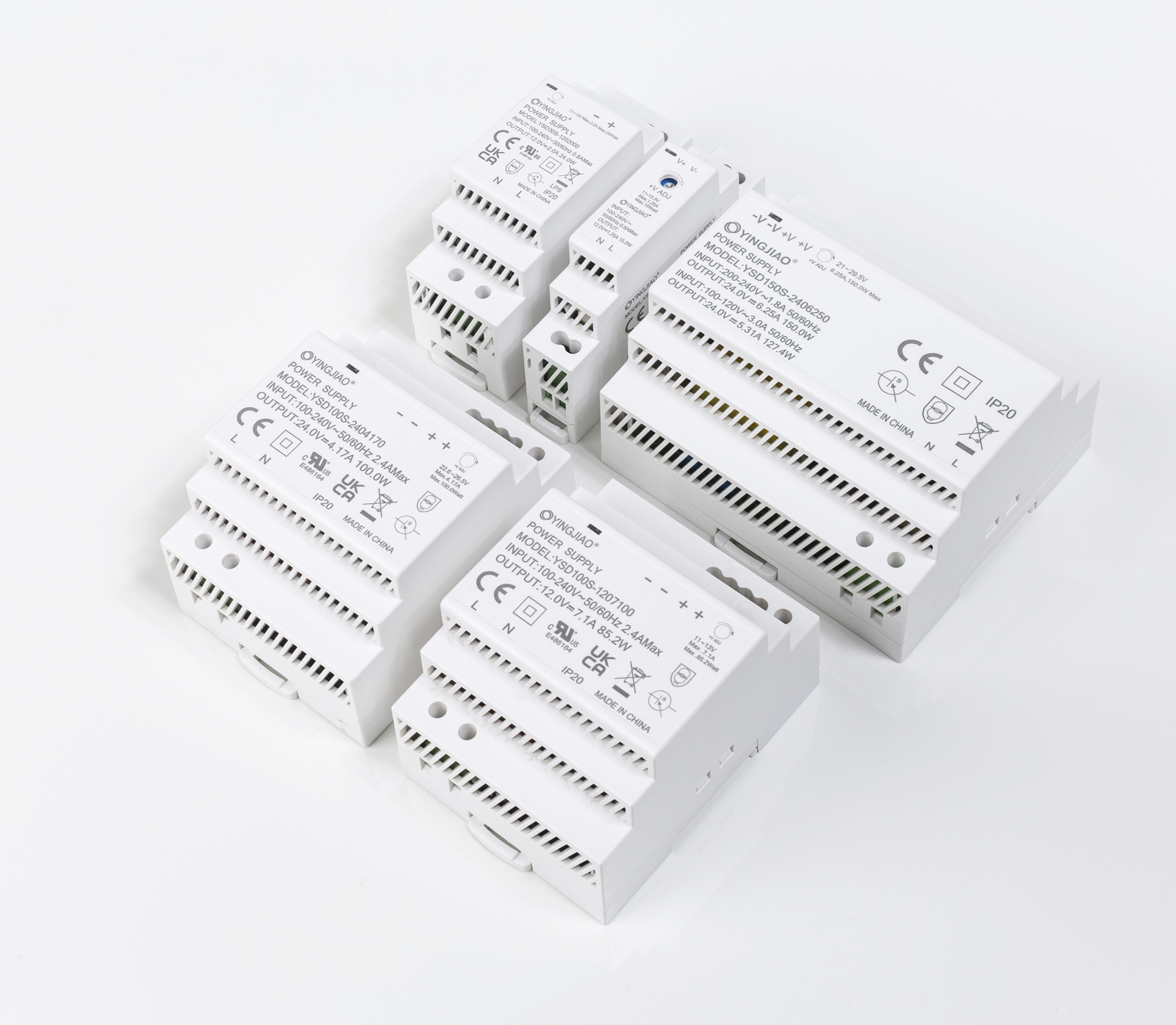

YSD-S is a series of DIN-rail industrial power supplies with 12 V and 24 V output voltages in a plastic enclosure with features such as DC voltage regulation by potentiometer and Class II insulation. The power supplies have a built-in set of protection circuits against short-circuit, overload and overtemperature and bad voltage levels. They provide a high MTBF and a high degree of safety. They comply with international standards. They are designed for widespread use in industrial automation systems and control systems.



SPECIFICATIONS:

  • input voltage range 100~240VAC
  • Frequency range of mains supply voltage:  50-60 Hz
  • no-load power consumption: 150mW
  • Control type: CV - constant output voltage
  • Rated output voltage: 12 V
  • output voltage trimmer adjustment: 11-13 V
  • Rated output power: 24 W
  • Rated load current:  2 A
  • max. output voltage ripple:  120mVp-p
  • Energy conversion efficiency:  greater than 86%
  • Operating temperature range:  -10ºC to +40ºC
  • output protection:  overcurrent protection  (OCP), short circuit protection  (SCP), overvoltage protection  (OVP)
  • input protection:  overvoltage (OVP), undervoltage (UVP)
  • dimensions: 35x90x58 mm
  • weight: 120 g
  • enclosure: IP20



CHARACTERISTICS:

  • compact slimline housing
  • LED signalling of output voltage
  • dual output terminals
  • high energy conversion efficiency
  • low ripple and excellent stabilisation
  • wide operating temperature range
To download
Symbol
YSD30S-1202000
Producer code
5904139606575
Series
input voltage AC
100-240VAC
output voltage DC (V)
12V
DC adjustment range
11~13V
output current (A)
2A
power (W)
24W
efficiency
86%
mains frequency range
50/60Hz
permissible temperature range
-10º~+40ºC
IP rating
IP20
enclosure
tworzywo ABS
dimensons
35x90x58mm
weight
120g
