DIN rail power supply 24V 6.25A 150W YINGJIAO | YSD150S-24006250
DIN rail power supply 24V 6.25A 150W YINGJIAO | YSD150S-24006250

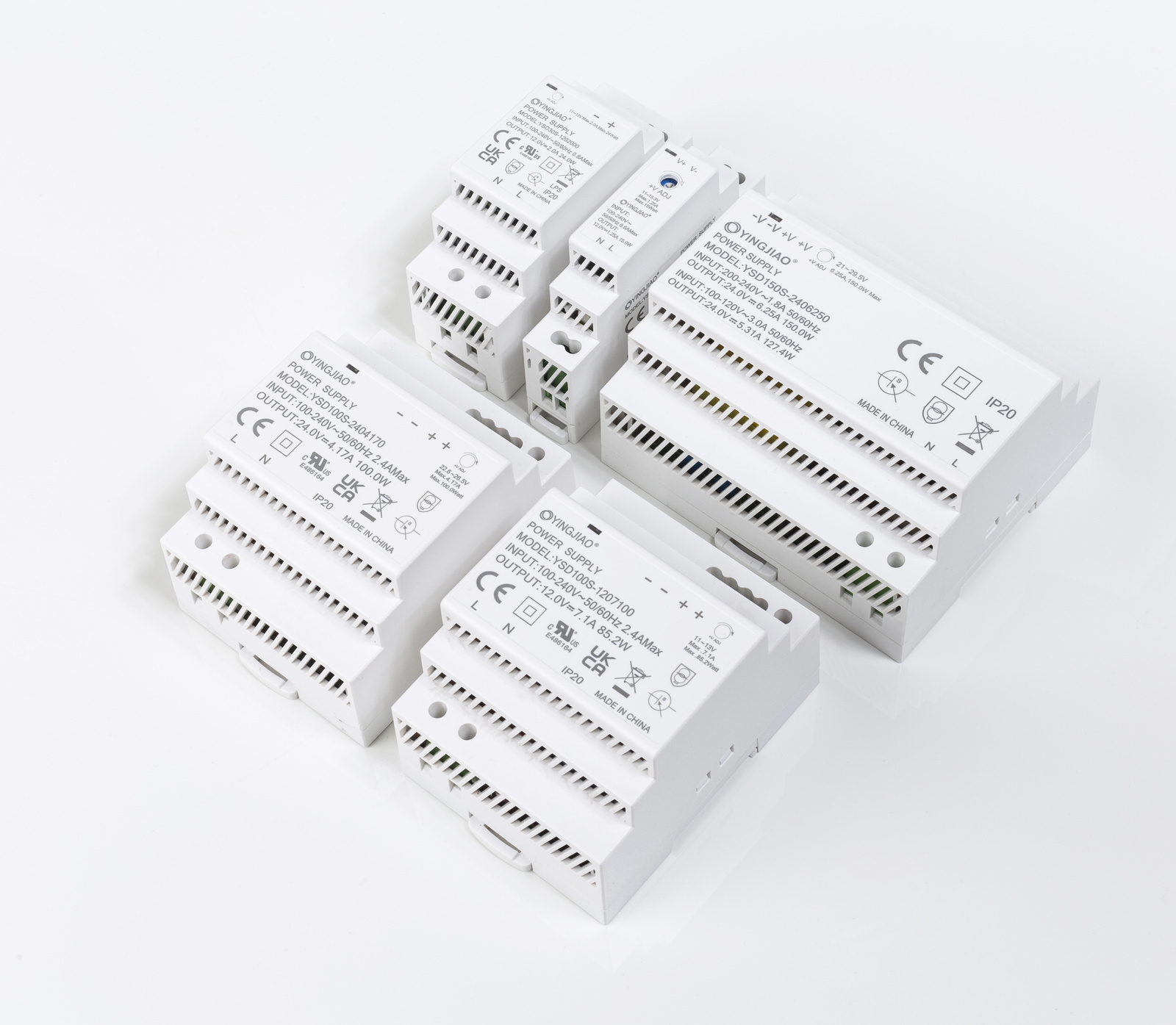

YSD-S is a series of DIN-rail industrial power supplies with output voltages of 12 V and 24 V in a plastic housing with features such as DC voltage regulation by potentiometer and Class II insulation. The power supplies have a built-in set of protection circuits against short-circuit, overload and excessive temperature and bad voltage levels. They provide a high MTBF and a high degree of safety. They meet international standards. They are designed for wide application in industrial automation systems and control systems.
SPECIFICATIONS:
- input voltage range 100~240VAC
- Frequency range of mains supply voltage: 50-60 Hz
- no-load power consumption: 300mW
- Control type: CV - constant output voltage
- Rated output voltage: 24 V
- output voltage trimmer adjustment: 21-29 V
- Rated output power: 150 W
- Rated load current: 6,25 A
- max. output voltage ripple: 100mVp-p
- Energy conversion efficiency: greater than 89%
- Operating temperature range: -10ºC to +40ºC
- output protection: overcurrent protection (OCP), short circuit protection (SCP), overvoltage protection (OVP)
- input protection: overvoltage (OVP), undervoltage (UVP)
- dimensions: 90x58x105 mm
- weight: 270 g
- enclosure: IP20
CHARACTERISTICS:
- compact slimline housing
- LED signalling of output voltage
- dual output terminals
- high energy conversion efficiency
- low ripple and excellent stabilisation
- wide operating temperature range
To download
Brand
Symbol
YSD150S-24006250
Producer code
5904139607718
Series
input voltage AC
100-240VAC
output voltage DC (V)
24V
DC adjustment range
21~29V
output current (A)
6,25A
power (W)
150W
efficiency
85%
mains frequency range
50/60Hz
permissible temperature range
-10º~+40ºC
IP rating
IP20
enclosure
tworzywo ABS
dimensons
90x58x105mm
weight
270 g
