Power supply for LED lighting 24V 0.62A 15W YINGJIAO | YSL15T-2400625
Power supply for LED lighting 24V 0.62A 15W YINGJIAO | YSL15T-2400625
Power supply for LED lighting 24V 0.62A 15W YINGJIAO | YSL15T-2400625
Power supply for LED lighting 24V 0.62A 15W YINGJIAO | YSL15T-2400625

Power supply for LED lighting 24V 0.62A 15W YINGJIAO | YSL15T-2400625

+ Add to compareAdd to shopping list
Size
uniwersalny
29,99 PLN
incl. VAT / pcs
Lowest price in 30 days before discount: / pcs
Regular price: / pcs
of
You can also buy using:
Free and fast delivery
28 days for free returns
This product is not available in a stationary store
Safe shopping
Deferred Payments. Buy now, pay later, if you don't return it
Buy now, pay later - 4 steps
When choosing a payment method, select PayPo.PayPo - buy now, pay later
PayPo will pay your bill in the store.
On the PayPo website, verify your information and enter your social security number.
After receiving your purchase, you decide what suits you and what doesn't. You can return part or all of your order - then the amount payable to PayPo will also be reduced.
Within 30 days of purchase, you pay PayPo for your purchases at no additional cost. If you wish, you spread your payment over installments.

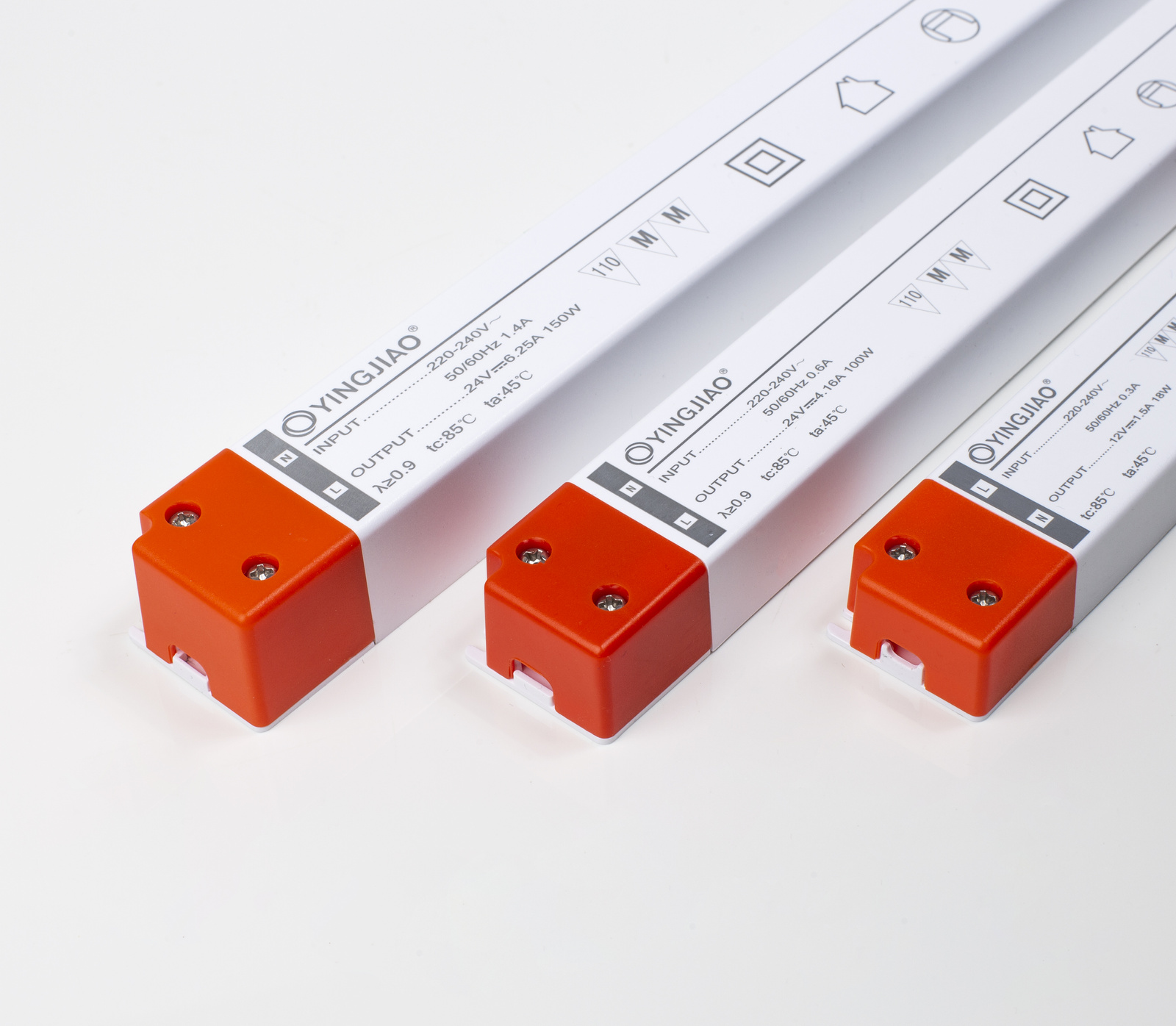

YSL-T power supplies are high-performance constant-voltage (CV) output units for LED applications. Their special feature is the elongated housing design, which is both slim and low. Within the series, versions are available with 12 and 24 V output voltages and output powers from 15 to 100 watts. The power supplies operate with an input voltage of 220-240VAC and have an integrated active PFC equalizer.



SPECIFICATIONS:

  • input voltage range 200-240VAC
  • Frequency range of mains supply voltage:  50/60 Hz
  • Rated output voltage:  24 V
  • Rated output power: 15 W
  • Rated load current:  0,62 A
  • max. output voltage ripple 240mVp-p
  • Energy conversion efficiency:  greater than 88%
  • output protection:  overcurrent protection  (OCP), short circuit protection  (SCP), overvoltage protection  (OVP)
  • input protection:  overvoltage (OVP), undervoltage (UVP)
  • protection against overheating
  • works with a dimmer
  • dimensions:  160x30x16 mm
  • weight: 150 g



CHARACTERISTICS:

  • elongated flat and narrow housing
  • high energy conversion efficiency
  • low starting current
  • low ripple and excellent stabilisation
  • wide operating temperature range -20 ... +50ºC.
  • easy-to-fit housing
  • fully protected electronics
  • compliance with international standards



APPLICATIONS:

  • building lighting systems
  • illuminated advertising
  • decorative lighting
  • industrial lighting
To download
Brand
YINGJIAO Electrical
Symbol
YSL15T-2400625
Producer code
5904139606711
Series
YSL-T
input voltage AC
200-240VAC
output voltage DC (V)
24V
output current (A)
0,62A
power (W)
15W
efficiency
88%
mains frequency range
50/60Hz
permissible temperature range
-20º~+50ºC
IP rating
IP20
enclosure
ABS plastic
dimensons
160x30x16mm
weight
150g
