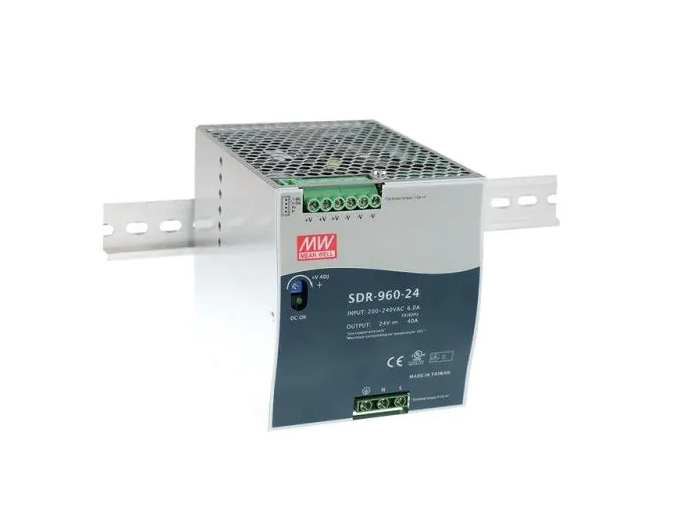

DIN rail power supply 960W 24V 40A MEAN WELL SDR-960-24

DIN rail power supply 960W 24V 40A MEAN WELL SDR-960-24

1 440,99 PLN
incl. VAT / pcs
Lowest price in 30 days before discount: / pcs
Regular price: / pcs
of
You can also buy using:
28 days for free returns
This product is not available in a stationary store
Safe shopping

SPECIFICATION:
.

  • output voltage: 24 V
  • rated current: 40 A
  • Rated output power: 960 W
  • efficiency: 94
  • supply voltage: 88~264VAC, 124~370VDC (180~264VAC, 254~370VDC SDR-960)
  • Built-in active PFC function
  • up to 94% efficiency
  • Parallel operation possible 3840W (7+1) SDR-480P; (3+1) SDR-960
  • short-circuit, overload, overvoltage, thermal protection
  • LED operation indication
  • DC relay connector OK (not available on SDR-75)
  • Permissible load capacity 150% of peak power for 3 seconds (130% SDR-960)
  • open-air cooling
  • Operating temperature -25~+70°C (-30~+70°C SDR-75, SDR-960)
  • mounting on DIN rail TS35 / 7.5 or 15
  • compliance with a range of standards and certifications
  • GL and SEMI F47 compliant (SDR-75,120,240,480)
  • wymiary: 110x125.2x150mm

The SDR-960 power supplies feature a wide operating temperature range, the possibility of momentary overloads and the possibility of parallel connection. They are MEAN WELL's most technically advanced DIN rail power supply models.

Symbol
SDR-960-24
Series
output voltage DC (V)
24V
output current (A)
40A
power (W)
960W
