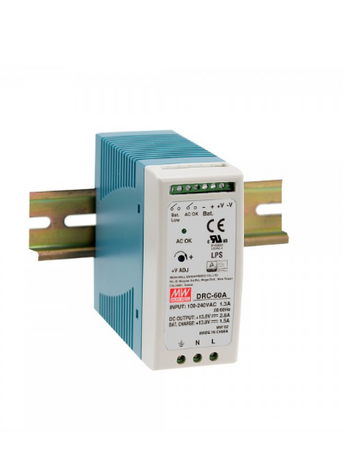

DIN rail 60W 13.8V 4.3A buffer power supply. 13.8V 1.5A DRC-60A
DIN rail 60W 13.8V 4.3A buffer power supply. 13.8V 1.5A DRC-60A
SPECIFICATIONS:
- input voltage: 90-264VAC, 124-370VDC
- output voltage: 13,8 V
- rated current: 4,3 A
- Rated output power: 60 W
- adjustable output voltage 13.8V: 12~15V; 27.6V: 24~30
- protection: short-circuit, overvoltage and overload protection
- Protection against discharging and reverse battery connection
- alarm signal AC OK and low battery DRC-40
- Relay output AC OK and low battery DRC-60/DRC-100
- open-air cooling
- operating temperature from -30~+70°C
- LED operation indication
- compliance with many standards and certificates
- wymiary: 40x90x100mm
The DRC-60 is a buffer power supply providing voltage maintenance. With an additional output for charging the battery, they can act as a UPS. The DRC-60A (for 12V batteries) and DRC-60B (for 24V batteries) are available. Alarm outputs indicate the operating status and battery over-discharge protection prevents damage to the battery.
Brand
Entity responsible for this product in the EU
MEAN WELL EUROPE N.V.More
Address:
Langs de Werf 8Postal code: 1185XTCity: AmstelveenCountry: NetherlandsPhone number: +31-20-758-6000E-mail: info@meanwell.eu
Symbol
DRC-60A
Series
input voltage AC
90-264VAC
output voltage DC (V)
13,8V
DC adjustment range
13.8V: 12~15V; 27.6V: 24~30
output current (A)
4,3A
power (W)
60W
efficiency
86%
mains frequency range
50/60Hz
permissible temperature range
-30°~+70°C
enclosure
ABS plastic
dimensons
40x90x100mm
weight
370g
