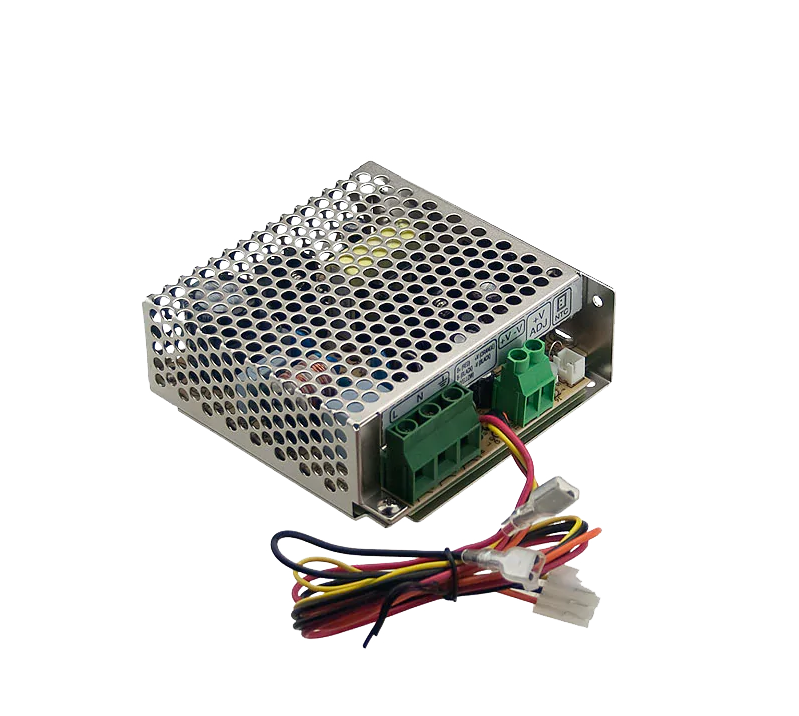

Power supply with wire output for 75W 27.6V 2.7A battery charging SCP-75-24
SPECIFICATIONS:
- Input voltage: 88-264VAC, 124-370VDC
- output voltage: 27,6 V
- rated current: 2,7 A
- Rated output power: 75 W
- efficiency: 85 %
- protection: short-circuit, overvoltage and overload protection
- reverse polarity battery protection
- possibility to adjust the output voltage in the range of -5%~+15% of the nominal value
- no-load power consumption <0.75W
- possibility of thermal compensation of the output voltage
- open-air cooling
- operating temperature from -20~+60°C
- compliance with many standards and certificates
- DIN rail mounting possible (with adapters)
- wymiary: 99x97x36mm
SCP series power supplies are designed for use in monitoring systems, access control, alarm systems, etc. In combination with an external battery, they provide uninterruptible power supply. During normal operation, the power supply charges the connected battery and, in the event of a mains voltage failure, uses the energy stored therein to power the receiver. In addition, it has a connector for connecting a thermistor to compensate for the voltage depending on the ambient temperature, and a hard-wired connector to signal a power failure.
Brand
Symbol
SCP-75-24
Series
power (W)
75W
output voltage DC (V)
27,6V
output current (A)
2,7A
