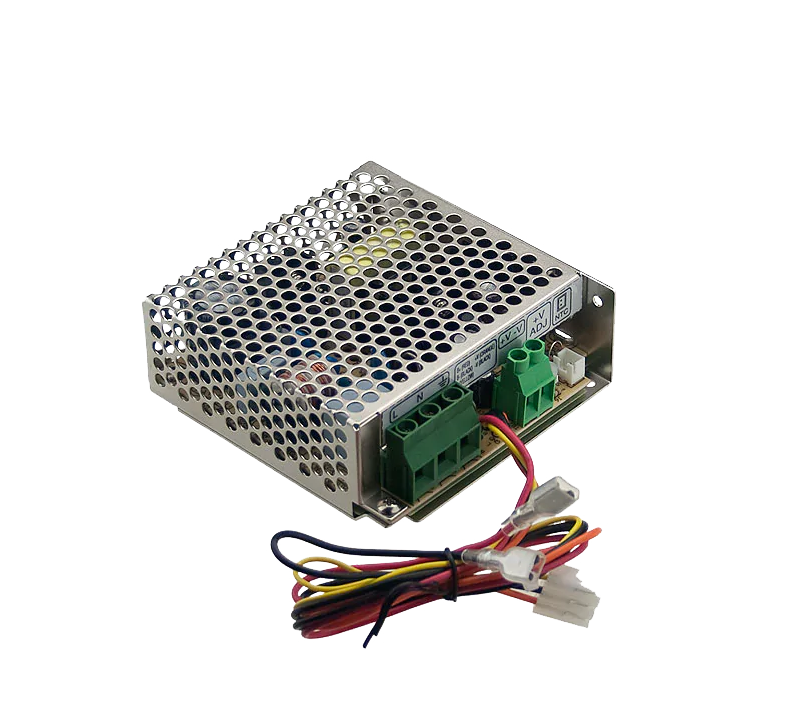

Power supply with wired output for 50W battery charging 27.6V 1.8A SCP-50-24
Power supply with wired output for 50W battery charging 27.6V 1.8A SCP-50-24
SPECIFICATION:
- input voltage: 88-264VAC, 124-370VDC
- output voltage: 27,6 V
- rated current: 1,8 A
- Rated output power: 50 W
- efficiency: 85 %
- protection: short-circuit, overvoltage and overload protection
- reverse polarity battery protection
- adjustable output voltage range of -5%~+15% of nominal value
- no-load power consumption <0.75W
- possibility of thermal compensation of the output voltage
- open-air cooling
- operating temperature from -20~+60°C
- compliance with many standards and certificates
- DIN rail mounting possible (with adapters)
- wymiary: 99x97x36mm
SCP series power supplies are designed for use in monitoring systems, access control, alarm systems, etc. In combination with an external battery, they provide uninterruptible power supply. During normal operation, the power supply charges the connected battery and, in the event of a mains voltage failure, uses the energy stored therein to power the receiver. In addition, it has a connector for connecting a thermistor to compensate for the voltage depending on the ambient temperature, and a hard-wired connector to signal a power failure.
Brand
Symbol
SCP-50-24
Series
input voltage AC
88-264VAC
output voltage DC (V)
27,6V
output current (A)
1,8A
power (W)
50W
efficiency
85%
mains frequency range
50/60Hz
permissible temperature range
-20º~+60ºC
enclosure
tworzywo ABS
dimensons
99x97x36mm
weight
450g
