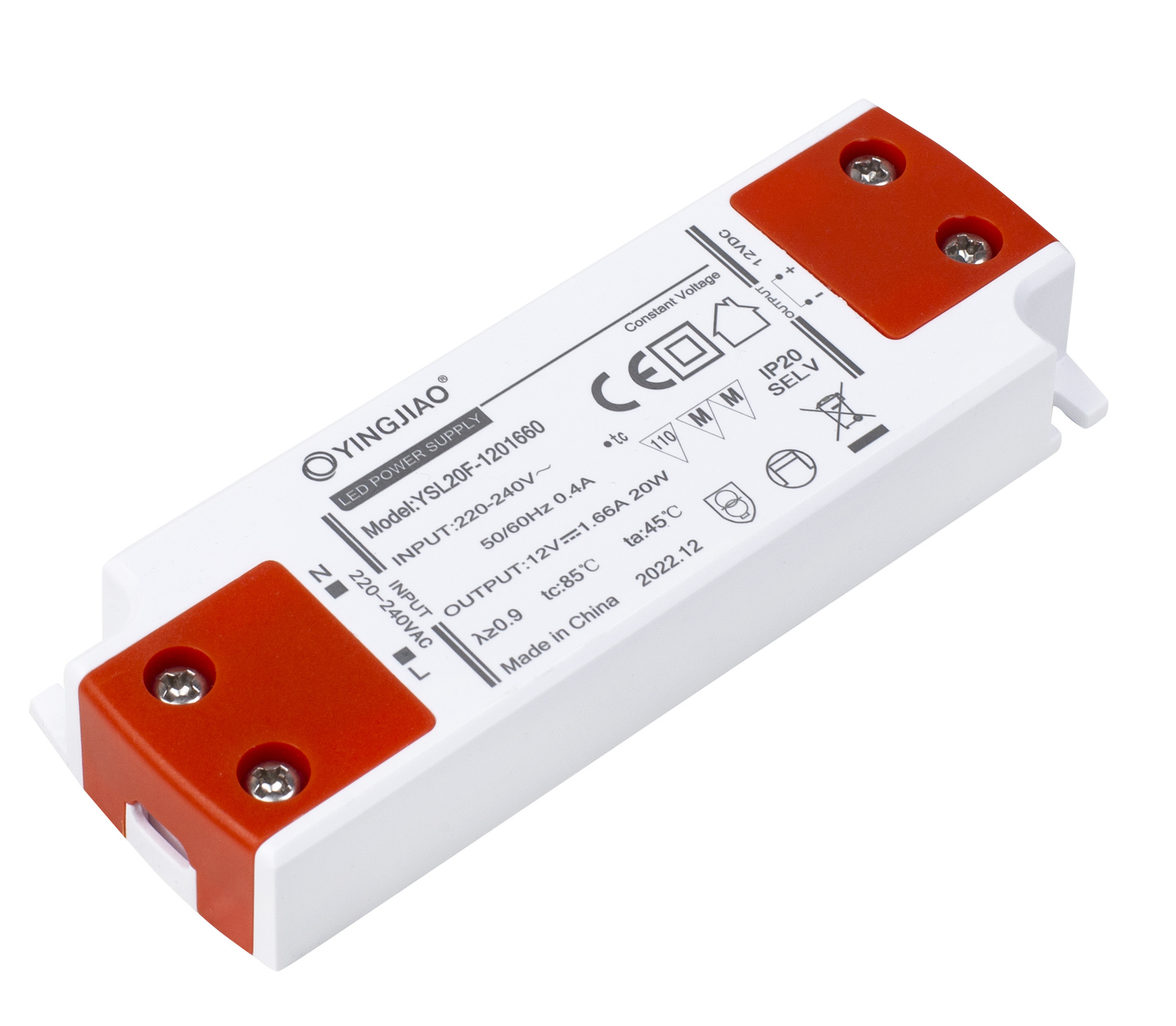

Power supply for LED lighting 12V 1,66A 20W YINGJIAO | YSL20F-1201660
Power supply for LED lighting 12V 1,66A 20W YINGJIAO | YSL20F-1201660
Power supply for LED lighting 12V 1,66A 20W YINGJIAO | YSL20F-1201660
Power supply for LED lighting 12V 1,66A 20W YINGJIAO | YSL20F-1201660
Power supply for LED lighting 12V 1,66A 20W YINGJIAO | YSL20F-1201660
Power supply for LED lighting 12V 1,66A 20W YINGJIAO | YSL20F-1201660

Power supply for LED lighting 12V 1,66A 20W YINGJIAO | YSL20F-1201660

36,99 PLN
incl. VAT / pcs
Lowest price in 30 days before discount: / pcs
Regular price: / pcs
of
You can also buy using:
28 days for free returns
Find out in which store you can check the product and buy it right away
Power supply for LED lighting 12V 1,66A 20W YINGJIAO | YSL20F-1201660
Power supply for LED lighting 12V 1,66A 20W YINGJIAO | YSL20F-1201660
Safe shopping

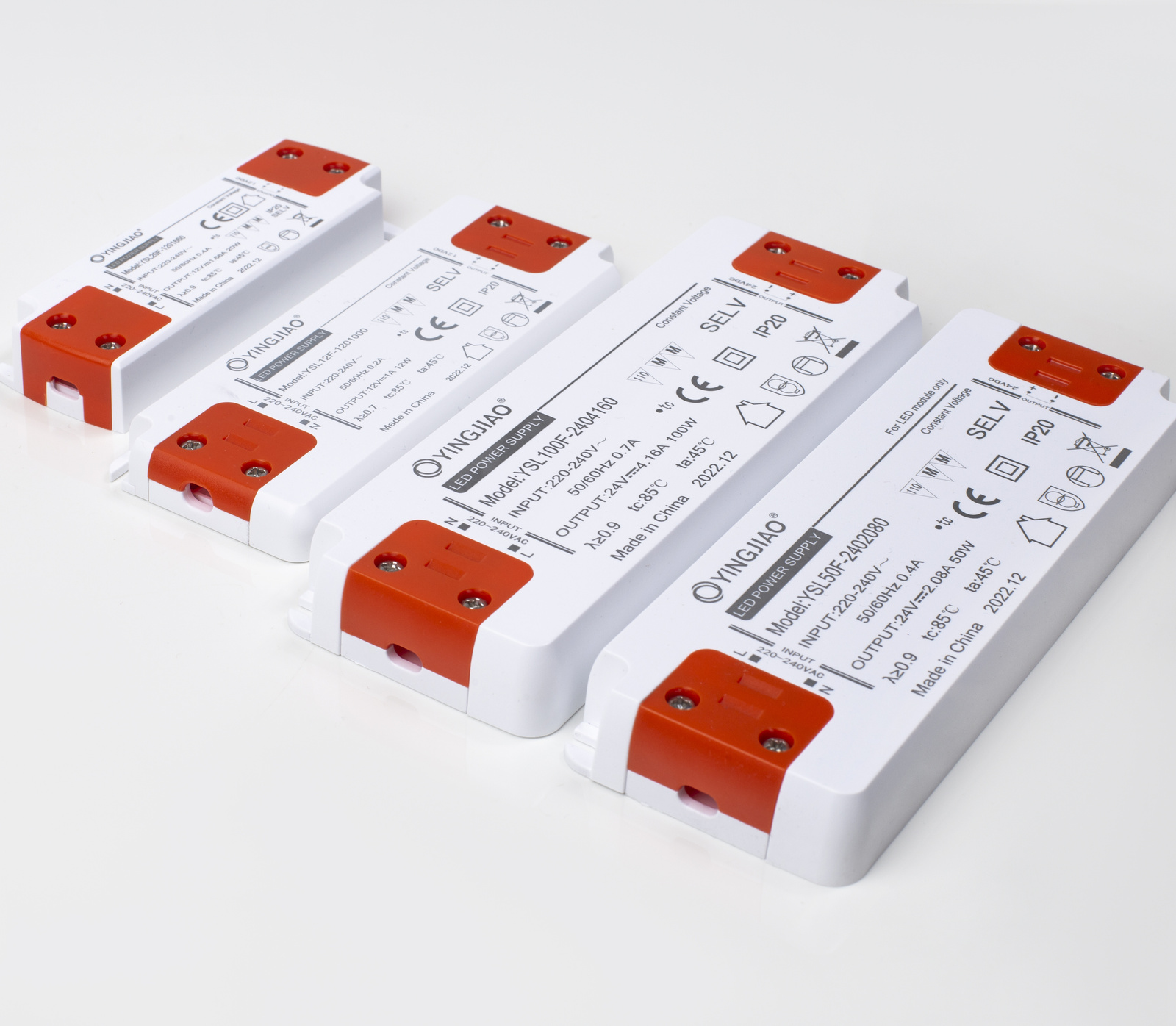

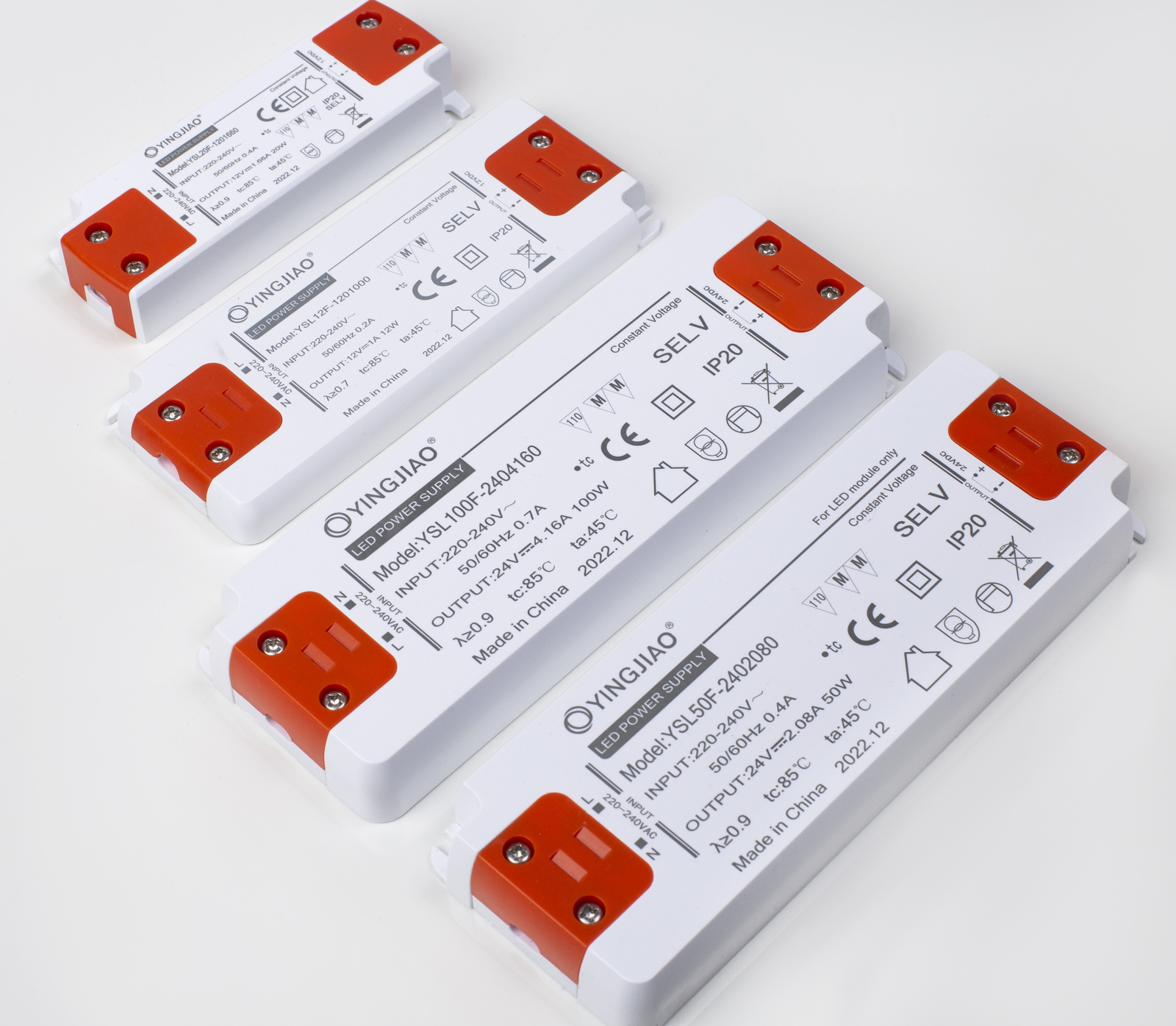

The YSL-F series LED power supplies are general-purpose constant-voltage (CV) versions. Within the family, versions are available with output voltages of 12 and 24 V and output power from 15 to 150 watts. The power supplies operate with an input voltage of 220-240VAC and have a built-in active PFC equalizer.



SPECIFICATIONS:

  • Input voltage range: 200-240VAC
  • Frequency range of mains supply voltage:  50/60 Hz
  • Rated output voltage: 12 V
  • Rated output power: 20 W
  • Rated load current:  1,66 A
  • max. output voltage ripple 120mVp-p
  • Energy conversion efficiency:  greater than 88%
  • output protection:  overcurrent protection  (OCP), short circuit protection  (SCP), overvoltage protection  (OVP)
  • input protection:  overvoltage (OVP), undervoltage (UVP)
  • protection against overheating
  • works with a dimmer
  • dimensions: 103x35,5x16,5 mm
  • weight: 70 g



CHARACTERISTICS:

  • high energy conversion efficiency
  • low starting current
  • low ripple and excellent stabilisation
  • wide operating temperature range from -20ºC to +50ºC
  • easy-to-fit housing
  • fully protected electronics
  • compliance with international standards



APPLICATIONS:

  • building lighting systems
  • illuminated advertising
  • decorative lighting
  • industrial lighting
To download
Symbol
YSL20F-1201660
Producer code
5904139607336
Series
input voltage AC
200-240VAC
output voltage DC (V)
12V
output current (A)
1,66A
power (W)
20W
efficiency
88%
mains frequency range
50/60Hz
permissible temperature range
-20º~+50ºC
IP rating
IP20
enclosure
ABS plastic
dimensons
127x50x12mm
weight
70g
