LED lighting power supply flat 24V 0,833A 20W YINGJIAO | YSL20M-2400833
LED lighting power supply flat 24V 0,833A 20W YINGJIAO | YSL20M-2400833
LED lighting power supply flat 24V 0,833A 20W YINGJIAO | YSL20M-2400833
LED lighting power supply flat 24V 0,833A 20W YINGJIAO | YSL20M-2400833

LED lighting power supply flat 24V 0,833A 20W YINGJIAO | YSL20M-2400833

+ Add to compareAdd to shopping list
Size
uniwersalny
45,49 PLN
incl. VAT / pcs
Lowest price in 30 days before discount: / pcs
Regular price: / pcs
of
You can also buy using:
Free and fast delivery
28 days for free returns
This product is not available in a stationary store
Safe shopping
Deferred Payments. Buy now, pay later, if you don't return it
Buy now, pay later - 4 steps
When choosing a payment method, select PayPo.PayPo - buy now, pay later
PayPo will pay your bill in the store.
On the PayPo website, verify your information and enter your social security number.
After receiving your purchase, you decide what suits you and what doesn't. You can return part or all of your order - then the amount payable to PayPo will also be reduced.
Within 30 days of purchase, you pay PayPo for your purchases at no additional cost. If you wish, you spread your payment over installments.

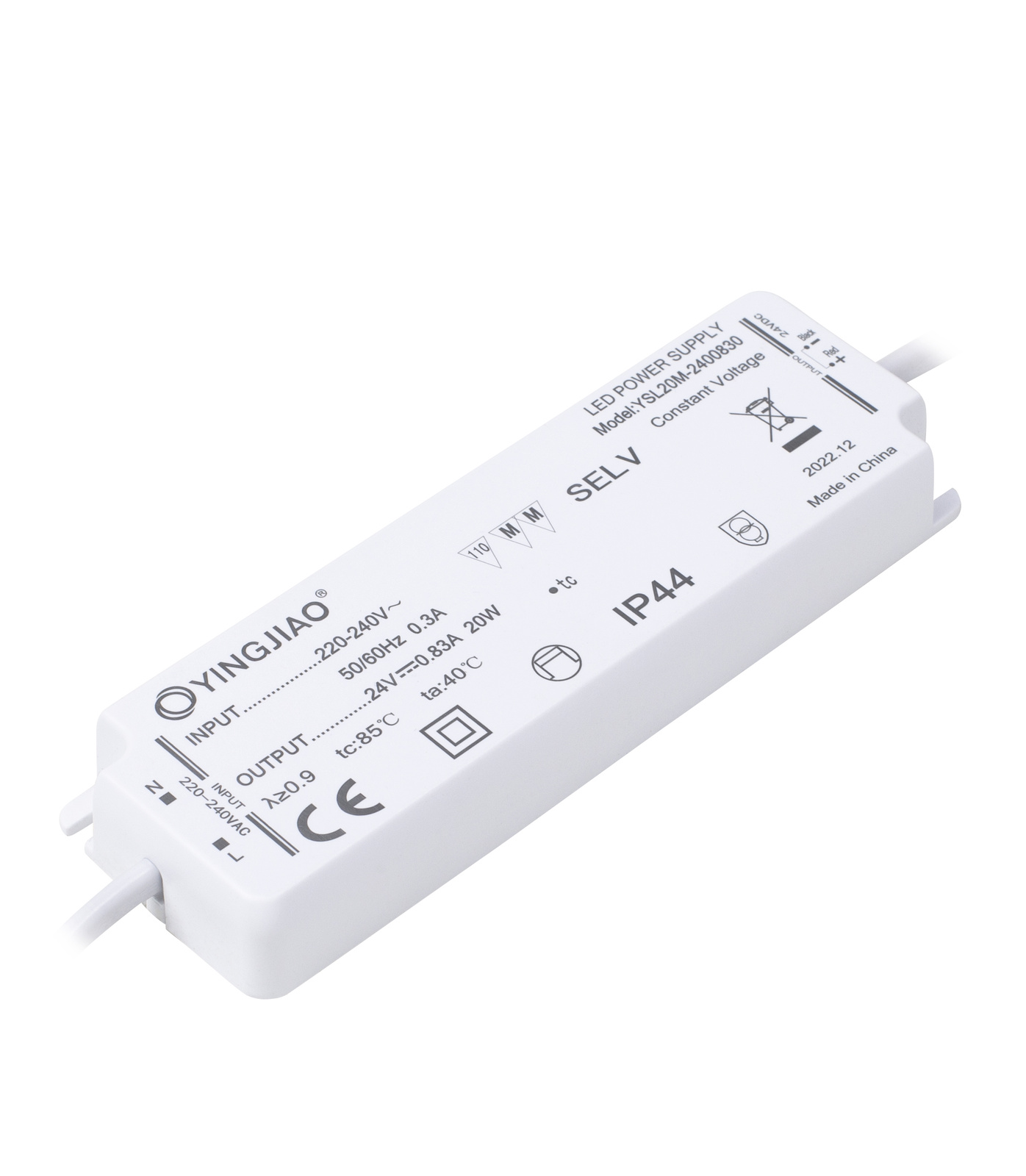

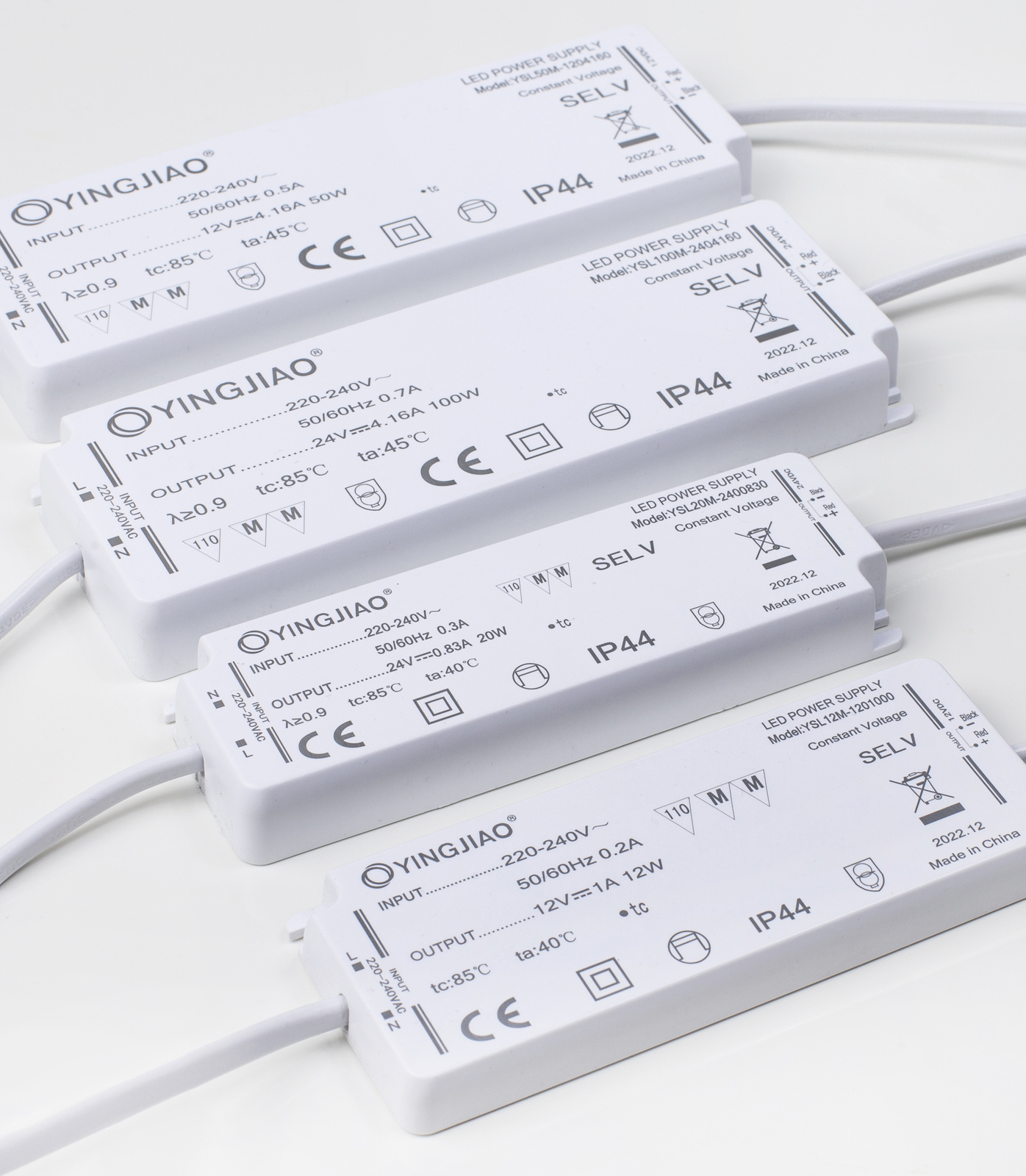

YSL-M power supplies are high-end units with a constant-voltage (CV) output for LED applications. Their feature is the flat design of the housing - its height is only 12-18 mm depending on the power, and it is sealed (IP44). Within the series, versions are available with output voltages of 12 and 24 V and output power from 6 to 100 watts. The power supplies operate with an input voltage of 200-240VAC.



SPECIFICATIONS:

  • input voltage range 200-240VAC
  • Frequency range of mains supply voltage:  50/60 Hz
  • Rated output voltage: 24 V
  • Rated output power: 20 W
  • rated load current 0,833 A
  • max. output voltage ripple 240mVp-p
  • Energy conversion efficiency:  greater than 88%
  • output protection:  overcurrent protection  (OCP), short circuit protection  (SCP), overvoltage protection  (OVP)
  • input protection:  overvoltage (OVP), undervoltage (UVP)
  • protection against overheating
  • works with a dimmer
  • dimensions:  132x42x17 mm
  • weight: 150 g



CHARACTERISTICS:

  • compact, flat housing with IP44
  • high energy conversion efficiency
  • low starting current
  • low ripple and excellent stabilisation
  • wide operating temperature range -20 ... +50ºC.
  • easy-to-fit housing
  • fully protected electronics
  • compliance with international standards



APPLICATIONS:

  • building lighting systems
  • illuminated advertising
  • decorative lighting
  • industrial lighting
To download
Brand
YINGJIAO Electrical
Symbol
YSL20M-2400833
Producer code
5904139607114
Series
YSL-M
input voltage AC
200-240VAC
output voltage DC (V)
24V
output current (A)
0,833A
power (W)
20W
efficiency
88%
mains frequency range
50/60Hz
permissible temperature range
-20º~+50ºC
IP rating
IP44
enclosure
ABS plastic
dimensons
132x42x17mm
weight
150g
