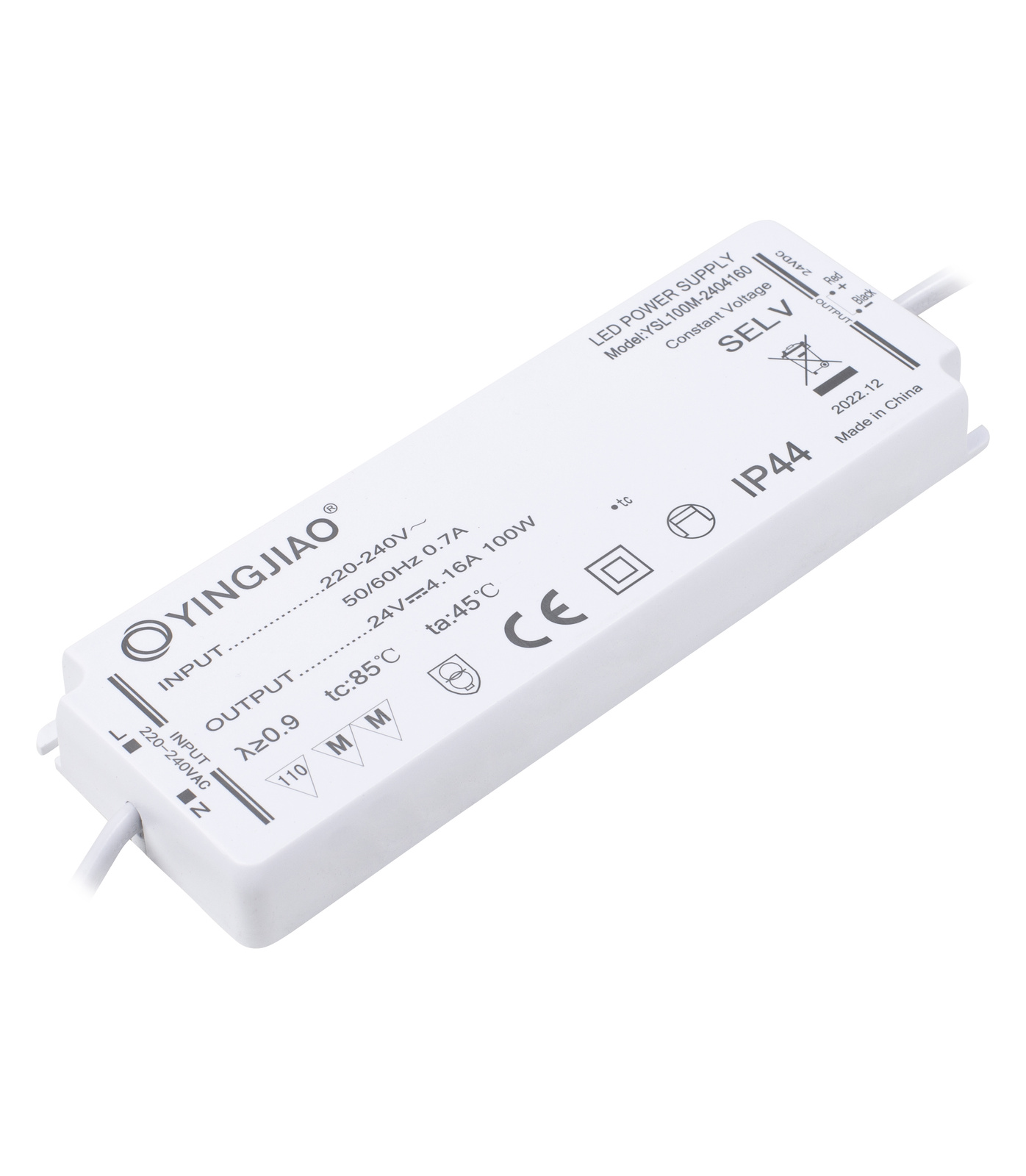

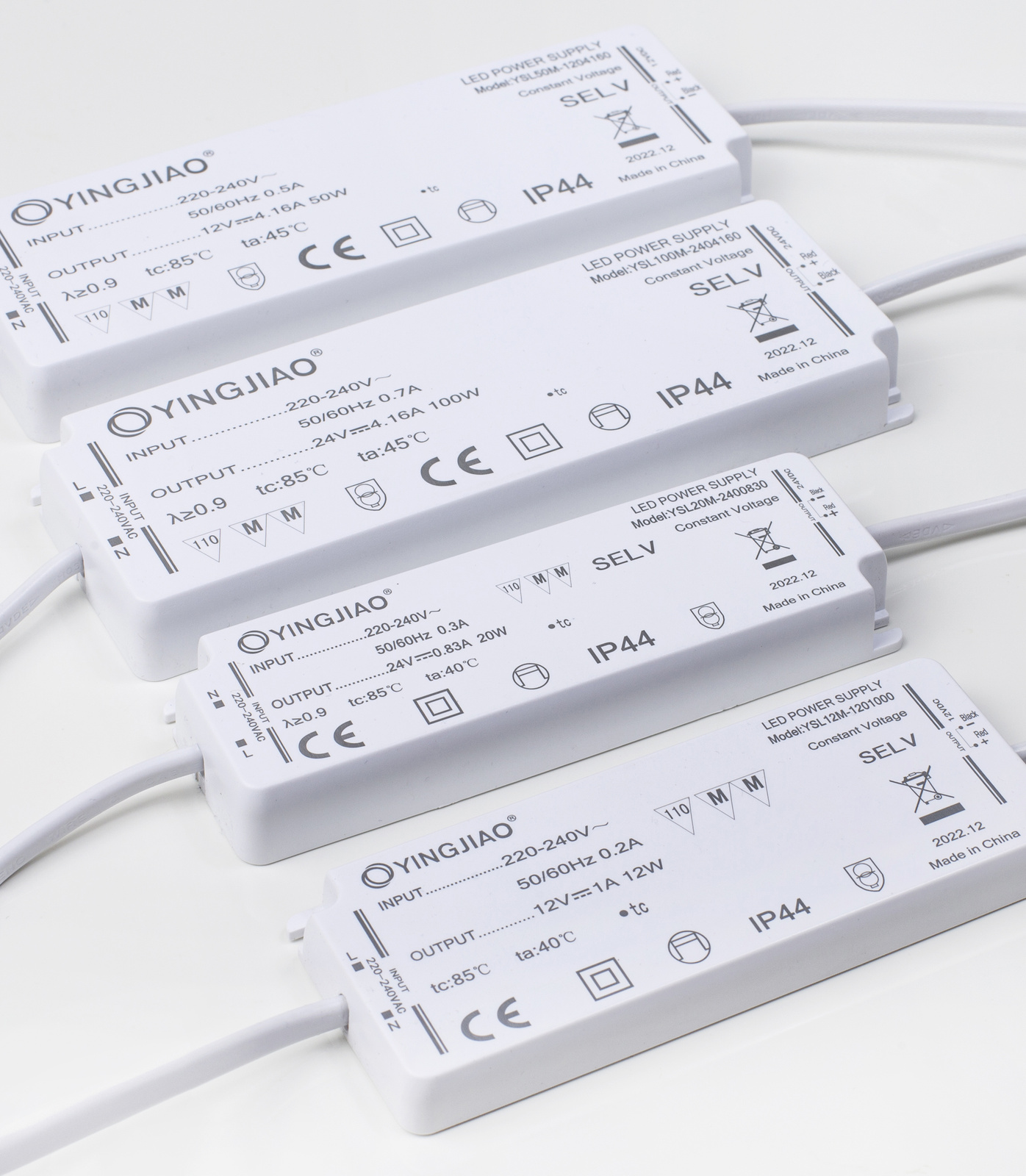

YSL-M power supplies are high-end units with a constant-voltage (CV) output for LED applications. Their feature is the flat design of the housing - its height is only 12-18 mm depending on the power, and it is sealed (IP44). Within the series, versions are available with output voltages of 12 and 24 V and output power from 6 to 100 watts. The power supplies operate with an input voltage of 200-240VAC.



SPECIFICATIONS:

  • input voltage range 200-240VAC
  • Frequency range of mains supply voltage:  50/60 Hz
  • Rated output voltage: 12 V
  • Rated output power: 132 W
  • rated load current 11 A
  • max. output voltage ripple 120mVp-p
  • Energy conversion efficiency:  greater than 88%
  • output protection:  overcurrent protection  (OCP), short circuit protection  (SCP), overvoltage protection  (OVP)
  • input protection:  overvoltage (OVP), undervoltage (UVP)
  • protection against overheating
  • works with a dimmer
  • dimensions: 177x56x19 mm
  • weight: 150 g



CHARACTERISTICS:

  • compact, flat housing with IP44
  • high energy conversion efficiency
  • low starting current
  • low ripple and excellent stabilisation
  • wide operating temperature range -20 ... +50ºC.
  • easy-to-fit housing
  • fully protected electronics
  • compliance with international standards



APPLICATIONS:

  • building lighting systems
  • illuminated advertising
  • decorative lighting
  • industrial lighting
Symbol
YSL150M-12011000
Producer code
5904139607206
Series
input voltage AC
200-240VAC
output voltage DC (V)
12V
output current (A)
11A
power (W)
132W
efficiency
88%
mains frequency range
50/60Hz
permissible temperature range
-20º~+50ºC
IP rating
IP44
enclosure
tworzywo ABS
dimensons
177x56x19mm
weight
150g
