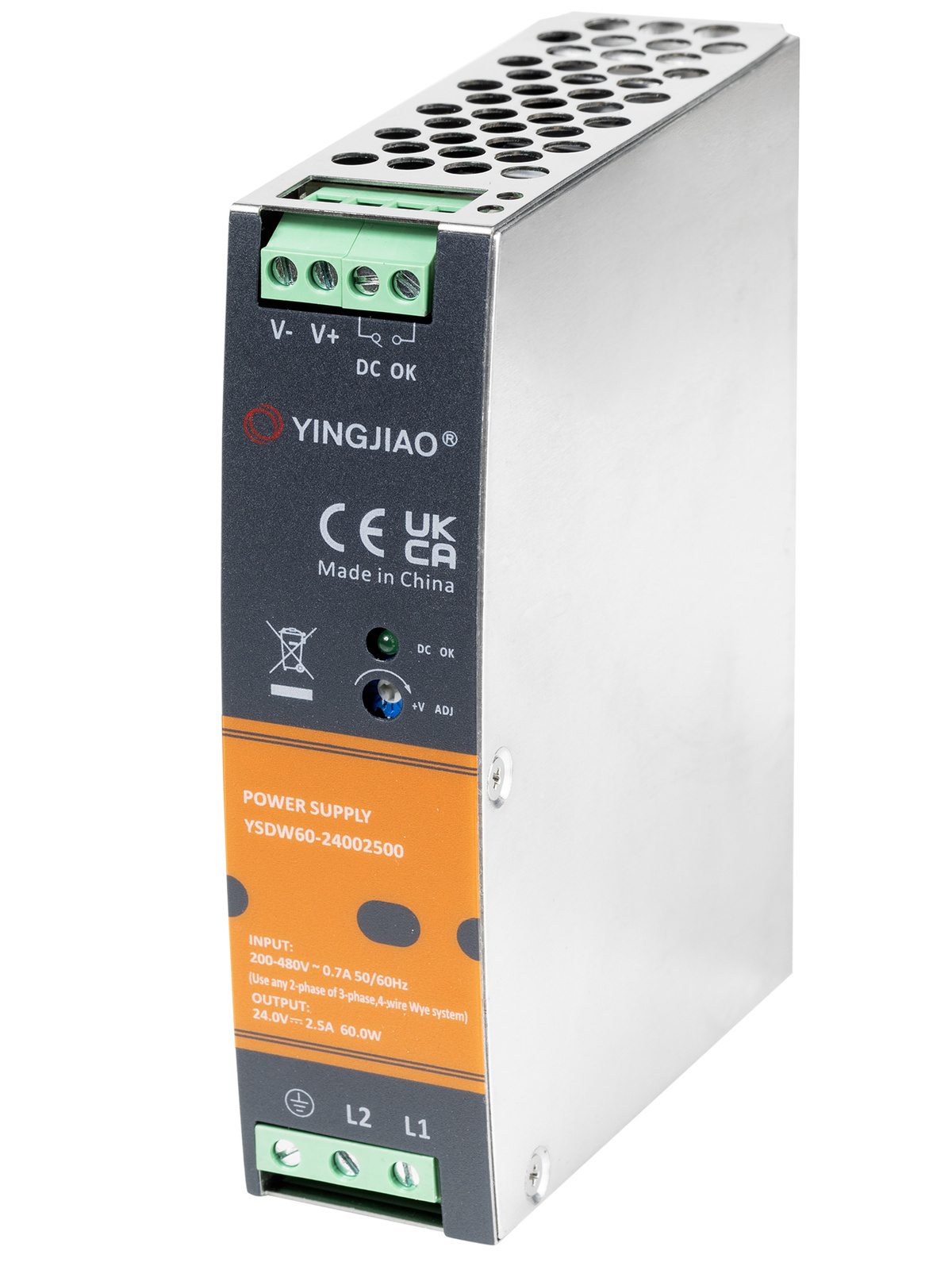

DIN rail power supply 2-phase 180-550VAC | 24V 2,5A 60W YINGJIAO | YSDW60-24002500

DIN rail power supply 2-phase 180-550VAC | 24V 2,5A 60W YINGJIAO | YSDW60-24002500

+ Add to compareAdd to shopping list
Size
uniwersalny
274,99 PLN
incl. VAT / pcs
Lowest price in 30 days before discount: / pcs
Regular price: / pcs
of
You can also buy using:
Free and fast delivery
28 days for free returns
This product is not available in a stationary store
Safe shopping
Deferred Payments. Buy now, pay later, if you don't return it
Buy now, pay later - 4 steps
When choosing a payment method, select PayPo.PayPo - buy now, pay later
PayPo will pay your bill in the store.
On the PayPo website, verify your information and enter your social security number.
After receiving your purchase, you decide what suits you and what doesn't. You can return part or all of your order - then the amount payable to PayPo will also be reduced.
Within 30 days of purchase, you pay PayPo for your purchases at no additional cost. If you wish, you spread your payment over installments.

A series of high-power DIN-rail industrial power supplies in a robust metal housing with features such as potentiometer-based DC voltage regulation, PFC correction and a DC OK relay output. These power supplies are designed for a wide range of applications in industrial automation systems and control systems. They are high-power single- or two-phase power supply units with a wide voltage range (180 ... 550 VAC), high efficiency and operating in a wide temperature range (-30 ... +70ºC). The power supplies have a built-in set of protection circuits against short-circuit, overload, overheating and bad voltage levels. They provide a high MTBF and a high degree of safety. They comply with international standards.



SPECIFICATION:

  • Input voltage range: 180~550VAC; 254~780VDC
  • Frequency range of mains supply voltage:  47-63 Hz
  • Control type: CV - constant output voltage
  • Rated output voltage: 24 V
  • output voltage trimmer adjustment: 24-29 V
  • Rated output power: 60 W
  • rated load current 2,5 A
  • max. output voltage ripple:  150mVp-p
  • Energy conversion efficiency:  greater than 89%
  • Operating temperature range:  -30ºC to +70ºC
  • output protection:  overcurrent protection  (OCP), short circuit protection  (SCP), overvoltage protection  (OVP)
  • input protection:  overvoltage (OVP), undervoltage (UVP)
  • dimensions: 32x100,5x125 mm
  • weight: 1000g
  • enclosure: IP20
  • DIN rail mounting TS-35



CHARACTERISTICS:

  • supply from one or two phases 180...550 VAC
  • robust metal housing
  • relay output DC OK
  • built-in PFC correction
  • low ripple and inrush current
  • category III surge protection
To download
Brand
YINGJIAO Electrical
Symbol
YSDW60-24002500
Producer code
5904139608005
Series
YSDW
input voltage AC
180~550VAC
output voltage DC (V)
24V
DC adjustment range
24~29V
output current (A)
2,5A
power (W)
60W
efficiency
89%
mains frequency range
47/63Hz
permissible temperature range
-30°~+70°C
IP rating
IP20
enclosure
metalowa
dimensons
32x100,5x125mm
weight
1000g
