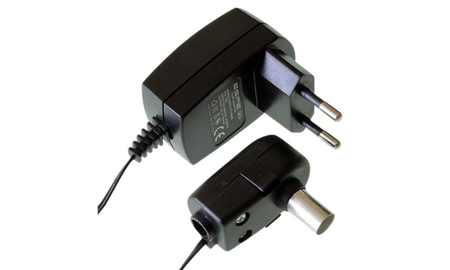

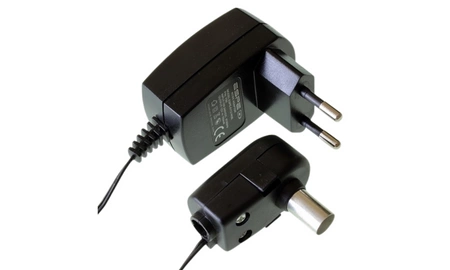

DVB-T antenna power supply AMPLIFIER 12V 300mA 3.6W
Recommended
DVB-T antenna power supply AMPLIFIER 12V 300mA 3.6W
SPECIFICATIONS:
- output voltage: 12 V
- output power: 3.6 W
- load current: 0.3 A
- rated input voltage range: 100-240 VAC
- permissible input voltage range: 90-264 VAC
- mains supply voltage frequency range: 47-63 Hz
- indicator LED
- operating temperature range: 0ºC to +40ºC
- output protection: overcurrent (OCP), short circuit (SCP), overvoltage (OVP)
- input protection: overvoltage (OVP), undervoltage (UVP)
- output cable length: 1.5 m with a cross section of 0.2 mm2
To download
Zasoby dotyczące bezpieczeństwa i produktów
Brand
Entity responsible for this product in the EU
Amicus Sp. z o. o.More
Address:
19 Kwietnia 31DPostal code: 05-090City: RybieCountry: PolskaE-mail: biuro@amicus.pl
Symbol
ESPE-0312-W2E-SEP
Producer code
5904139604175
Series
input voltage AC
100-240VAC
output voltage DC (V)
12V
output current (A)
0,3A
power (W)
3,6W
polarization
no
efficiency
75%
mains frequency range
47/63Hz
permissible temperature range
0º~+40ºC
enclosure
ABS plastic
dimensons
75x48x68mm
weight
61g
