LED lighting power supply 24V 1A 24W waterproof IP67 YINGJIAO | YCL24-2401000
LED lighting power supply 24V 1A 24W waterproof IP67 YINGJIAO | YCL24-2401000
LED lighting power supply 24V 1A 24W waterproof IP67 YINGJIAO | YCL24-2401000
LED lighting power supply 24V 1A 24W waterproof IP67 YINGJIAO | YCL24-2401000
LED lighting power supply 24V 1A 24W waterproof IP67 YINGJIAO | YCL24-2401000
LED lighting power supply 24V 1A 24W waterproof IP67 YINGJIAO | YCL24-2401000
LED lighting power supply 24V 1A 24W waterproof IP67 YINGJIAO | YCL24-2401000
LED lighting power supply 24V 1A 24W waterproof IP67 YINGJIAO | YCL24-2401000
LED lighting power supply 24V 1A 24W waterproof IP67 YINGJIAO | YCL24-2401000
LED lighting power supply 24V 1A 24W waterproof IP67 YINGJIAO | YCL24-2401000

LED lighting power supply 24V 1A 24W waterproof IP67 YINGJIAO | YCL24-2401000

+ Add to compareAdd to shopping list

48,49 PLN

incl. VAT / 1pcs
Lowest price in 30 days before discount: / pcs
Regular price: / pcs
List price:
You can buy for pts.
of
You can also buy using:
Contact the shop staff, in order to estimate time of preparing this product for shipment.
Shipment
Free and fast delivery
28 days for free returns
This product is not available in a stationary store
Safe shopping
Deferred Payments. Buy now, pay later, if you don't return it
Buy now, pay later - 4 steps
When choosing a payment method, select PayPo.PayPo - buy now, pay later
PayPo will pay your bill in the store.
On the PayPo website, verify your information and enter your social security number.
After receiving your purchase, you decide what suits you and what doesn't. You can return part or all of your order - then the amount payable to PayPo will also be reduced.
Within 30 days of purchase, you pay PayPo for your purchases at no additional cost. If you wish, you spread your payment over installments.
After purchase you will receive pts.

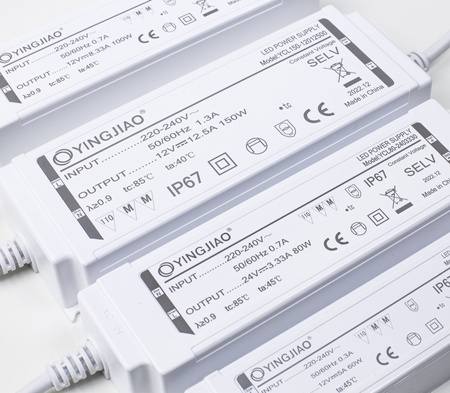

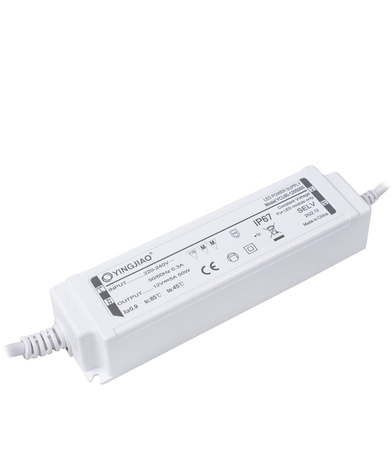

The YCL series of power supplies are high-performance constant-voltage (CV) output units with IP67 protection for LED applications. Within the series, versions are available with 12 and 24 V output voltages and output power from 40 to 200 watts. The power supplies operate with an input voltage of 200-240VAC and have a built-in active PFC circuit to ensure a power factor of more than 0.9.



SPECIFICATIONS:

  • Input voltage range:  200-240VAC
  • Frequency range of mains supply voltage:  50/60 Hz
  • Rated output voltage: 24 V
  • Rated output power: 24 W
  • rated load current : 1 A
  • max. output voltage ripple 400mVp-p
  • Energy conversion efficiency:  greater than86%
  • output protection:  overcurrent protection  (OCP), short circuit protection  (SCP), overvoltage protection  (OVP)
  • input protection:  overvoltage (OVP), undervoltage (UVP)
  • protection against overheating
  • works with a dimmer
  • dimensions: 118x35x26 mm
  • weight: 190g



CHARACTERISTICS:

  • compact, sealed, IP67 enclosure
  • high energy conversion efficiency of over 88% (40-60W) and over 90% (>75W)
  • low ripple and excellent stabilisation
  • wide operating temperature range -20 ... +45ºC.
  • easy-to-fit housing
  • fully protected electronics
  • compliance with international standards



APPLICATIONS:

  • building lighting systems
  • illuminated advertising
  • decorative lighting
  • industrial lighting
To download
Zasoby dotyczące bezpieczeństwa i produktów
Brand
YINGJIAO Electrical
Entity responsible for this product in the EU
Amicus Sp. z o. o.More
Address: 19 Kwietnia 31DPostal code: 05-090City: RybieCountry: PolandE-mail: biuro@amicus.pl
Symbol
YCL24-2401000
Producer code
5904139606964
Series
YCL
input voltage AC
200-240VAC
output voltage DC (V)
24V
output current (A)
1A
power (W)
24W
efficiency
86%
mains frequency range
50/60Hz
permissible temperature range
-20º~+45ºC
IP rating
IP67
enclosure
ABS plastic
dimensons
118x35x26mm
weight
190g
