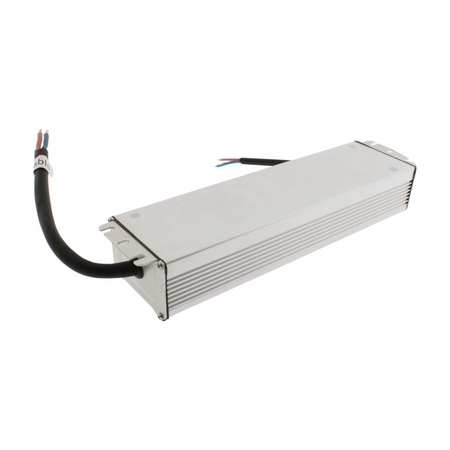

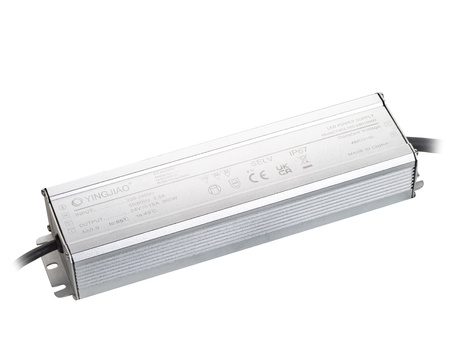

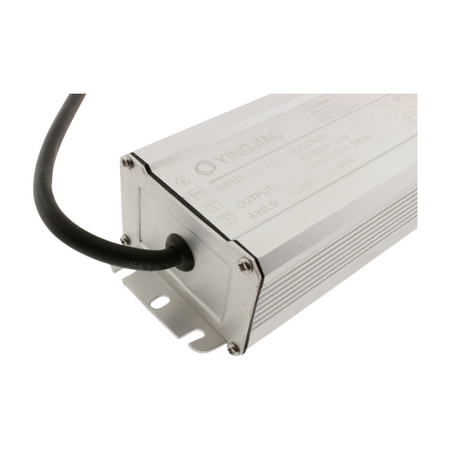

LED lighting power supply 24V 10,41A 250W waterproof IP67 YINGJIAO | YSCL250-24010410
LED lighting power supply 24V 10,41A 250W waterproof IP67 YINGJIAO | YSCL250-24010410
SPECIFICATIONS:
- input voltage range 220-240VAC
- Frequency range of mains supply voltage: 50/60 Hz
- Rated output voltage: 24 V
- Rated output power: 250 W
- rated load current 10,41 A
- max. output voltage ripple 400mVp-p
- Energy conversion efficiency: greater than 92%
- output protection: overcurrent protection (OCP), short circuit protection (SCP), overvoltage protection (OVP)
- input protection: overvoltage (OVP), undervoltage (UVP)
- protection against overheating
- dimensions: 210x70x44 mm
- weight: 600 g
APPLICATIONS:
- illuminated advertising
- decorative lighting
- interior lighting
- industrial lighting
To download
Safety and product resources
Brand
Entity responsible for this product in the EU
Amicus Sp. z o. o.More
ProducerNinghai Yingjiao Electrical Co. Ltd.Address:
Cuijia VillagePostal code: 315613City: Xidian TownCountry: ChinyPhone number: 86-574-87563879E-mail: yj-sales3@yingjiao.com
Responsible entityAmicus Sp. z o. o.Address:
19 kwietnia 31Postal code: 05-090City: RybieCountry: PolskaPhone number: 668699948E-mail: biuro@amicus.pl
Symbol
YSCL250-24010410
Producer code
5904139609781
Series
input voltage AC
220-240VAC
output voltage DC (V)
24V
output current (A)
10,41A
power (W)
250W
efficiency
92%
mains frequency range
50/60Hz
permissible temperature range
-20º~+45ºC
IP rating
IP67
enclosure
metalowa
dimensons
210x70x44mm
weight
600 g
