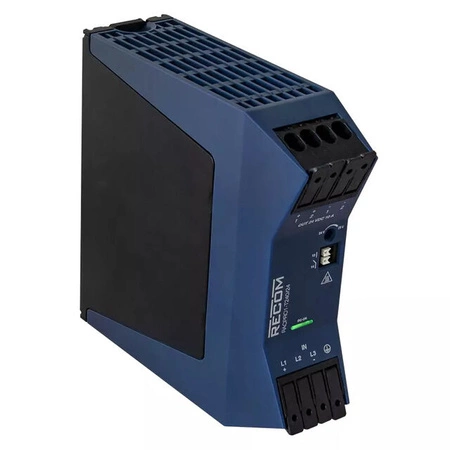

Three-phase DIN rail power supply 24V 10A 240W RECOM | RACPRO1-T240/24
SPECIFICATIONS:
- power: 240 W
- output current: 10 A
- output voltage: 24 VDC
- output voltage range 24...28V DC
- three-phase supply voltage: 3x 320...575V AC
- insulation voltage: 3.5kV, 5kV DC
- electrical connection: push-in terminals
- mounting: DIN rail
- external dimensions: 135x43x140.4mm
- weight: 690 g
- protection: overcurrent OCP, overvoltage OVP, short-circuit SCP
- additional information:
- DC-OK LED
- battery charger
- parallel operation
- power increase
The RACPRO1-T240 power supply is a highly reliable, three-phase DIN rail-mounted power supply with an extremely compact footprint. It has been specifically designed for demanding applications in harsh industrial automation environments with extended input surge immunity up to 6kVAC and >35V output reverse voltage immunity, making it suitable for safe operation with reverse loads such as decelerating motors and inductors. The units deliver up to 240W over the full ambient temperature range of -40°C to +70°C with convection-only cooling. A thermal power bonus of up to 288 W at 45°C and a power boost of up to 150% for 5 s make them suitable for powering loads with high inductance or capacitance. The unique and innovative state-of-the-art design with 25° push-in connectors allows easy installation or replacement without tools. The product is certified in accordance with the global safety standards IEC/EN/UL 62368-1, IEC/EN/UL 61010-1 and IEC/EN/UL/CSA 61010-2-201. Radiated and conducted electromagnetic emissions comply with the heavy industry emission standard EN 61000-6-4 Class B and the immunity standard EN 61000-6-2.
