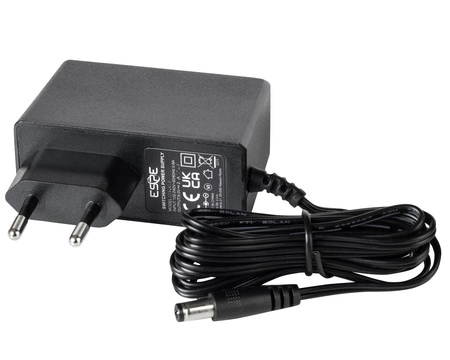

Power supply for guitar effects Behringer Korg Boss Dunlop | 9V 2.5A
New in
Power supply for guitar effects Behringer Korg Boss Dunlop | 9V 2.5A
- substitute
Save by buying more

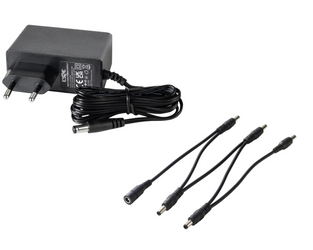

Power supply for guitar effects Behringer Korg Boss Dunlop + splitter
59,99 PLN incl. VAT/1pcs
Power supply dedicated to guitar effects:
- Behringer
- Korg
- Boss
- Dunlop
SPECIFICATIONS:
- Input parameters:
- input voltage range: 100-240 VAC
- range frequency of mains supply voltage: 47-63 Hz
- maximum inrush current: 50 A
- maximum allowable current consumption: 0.6 A
- no-load power consumption: 0.1 W
- output parameters:
- rated output voltage: 9 V
- rated output power: 22,5 watts
- rated load current: 2,5 A
- average efficiency during operation: above 86%
- energy efficiency class: DoE Level VI, ErP.
- collateral:
- input: over-voltage (OVP), under-voltage
- output: overcurrent (OCP), short circuit (SCP), overvoltage (OVP): OCP (105-150%) SCP, OVP (32 V)
- Automatic return to work after the cause of the error ceases;
- thermal protection
- safety and regulatory requirements:
- guaranteed insulation voltage strength of 3 kVAC (input to output)
- minimum insulation resistance: 100MΩ
- galvanic isolation class: 2
- compliance with safety standards: EN63268-1
- EMC compliance: EN55032 Class B, EN61000-4-2, EN61000-4-4, EN61000-4-6
- approval marks: RoHS, UKCA, CE
- performance and operating parameters:
- working temperature range: from -5 to 40ºC
- housing: black ABS plastic
- output cable length: 1.5 m / AWG22
- dimensions: 70x30x64 mm
- input connection: EU plug
A reliable replacement power supply for your device!
Our power supply has been designed with the energy requirements of your device in mind, which not only guarantees safe use but also extends the life of your device. This allows users to fully utilise the potential of their equipment without fear of damage resulting from inadequate power supply.
It is characterised not only by high energy efficiency, but also by voltage stability, quiet operation and long service life. Choosing the right high-quality power supply can significantly affect the performance and reliability of your device.
To download
Zasoby dotyczące bezpieczeństwa i produktów
Brand
Entity responsible for this product in the EU
Amicus Sp. z o. o.More
Address:
19 Kwietnia 31DPostal code: 05-090City: RybieCountry: PolskaE-mail: biuro@amicus.pl
Symbol
E24-2409-214
Producer code
5904139615140
Series
input voltage AC
100-240 VAC
output voltage DC (V)
9V
output current (A)
2,5A
power (W)
22,5W
polarization
(-) in the middle
efficiency
86%
mains frequency range
47/63Hz
permissible temperature range
-5º~+40ºC
enclosure
ABS plastic
dimensons
70x30x64 mm
weight
100g
