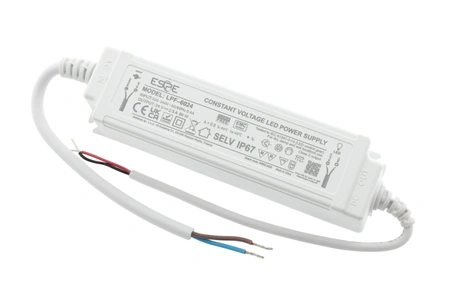

Power supply for LED lighting 24V 2,5A 60W IP67 waterproof ESPE | LPF-6024

APPLICATION:

• general application in LED lighting
• LED lighting systems in commerce and industry
• stage lighting
• visual advertising and digital signage
• architectural LED lighting

SPECIFICATION:

input parameters:

• input voltage range: 220-240VAC
• frequency range of mains supply voltage: 50Hz
• maximum starting current: 40A
• maximum permissible current consumption: 0.4A

output parameters:

• control type: CV - constant output voltage
• rated output voltage: 24V
• rated output power: 60W
• rated load current: 2,5A
• energy conversion efficiency: 89%
• maximum start-up time: up to 500 ms

security measures:

• input: overvoltage (OVP), undervoltage (UVP)
• output: overcurrent (OCP), short circuit (SCP), overvoltage (OVP): OCP (115-145%) SCP, OVP (16V)
• automatic return to operation after the cause of the error has ceased
• thermal protection

safety and legal requirements:

• guaranteed insulation voltage resistance: 3 kVAC (input to output)
• minimum insulation resistance: >100 MΩ
• Compliance with safety standards: EN61347-1, EN61347-2-13 EN60598-1, EN60598-2-6
• compliance with EMC standards (emission): EN55015
• Compliance with EMC standards (harmonics): EN61000-3-2, -3-3, Class C
• Compliance with EMC standards (immunity): EN61547 EN61000-4-2, -4-5, Class C
• CE, UKCA, RoHS
