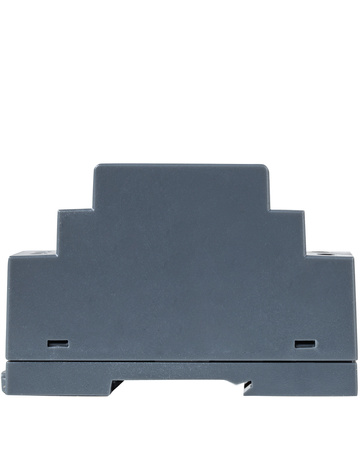

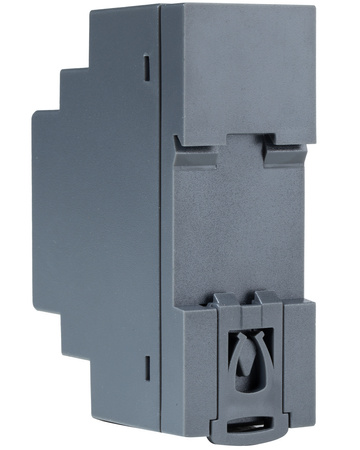

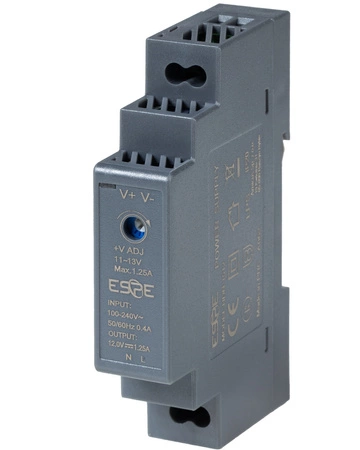

DIN rail power supply 15V 1A 15W ESPE | HDN-1515
DIN rail power supply 15V 1A 15W ESPE | HDN-1515
DIN rail power supply 15V 1A 15W ESPE | HDN-1515
DIN rail power supply 15V 1A 15W ESPE | HDN-1515
DIN rail power supply 15V 1A 15W ESPE | HDN-1515
DIN rail power supply 15V 1A 15W ESPE | HDN-1515
DIN rail power supply 15V 1A 15W ESPE | HDN-1515
DIN rail power supply 15V 1A 15W ESPE | HDN-1515

DIN rail power supply 15V 1A 15W ESPE | HDN-1515

+ Add to compareAdd to shopping list
output voltage DC (V)
output current (A)
power (W)

44,99 PLN

incl. VAT / 1pcs
Lowest price in 30 days before discount: / pcs
Regular price: / pcs
List price:
You can buy for pts.
of
You can also buy using:
Contact the shop staff, in order to estimate time of preparing this product for shipment.
Shipment
Free and fast delivery
14 days for free returns
This product is not available in a stationary store
Safe shopping
Deferred Payments. Buy now, pay later, if you don't return it
Buy now, pay later - 4 steps
When choosing a payment method, select PayPo.PayPo - buy now, pay later
PayPo will pay your bill in the store.
On the PayPo website, verify your information and enter your social security number.
After receiving your purchase, you decide what suits you and what doesn't. You can return part or all of your order - then the amount payable to PayPo will also be reduced.
Within 30 days of purchase, you pay PayPo for your purchases at no additional cost. If you wish, you spread your payment over installments.
After purchase you will receive pts.

Specification:

input parameters:

  • input voltage range 100-240 VAC
  • Frequency range of mains supply voltage:  47-53 Hz
  • no-load power consumption: less than 0.2 W

output parameters:

  • regulation type: CV - constant output voltage
  • Rated output voltage: 15 V
  • output voltage trimmer adjustment: 14-16 V
  • Rated output power: 15 W
  • rated load current 1 A
  • max. output voltage ripple: 150 mVp-p
  • energy conversion efficiency: over 85%

additional information:

  • operating temperature range: 0ºC to +40ºC
  • output protection:  overcurrent protection (OCP), short circuit protection (SCP), overvoltage protection (OVP)
  • input protection:  overvoltage (OVP), undervoltage (UVP)
  • CE, UKCA, RoHS

characteristics:

  • small dimensions
  • high power output
  • based on high-end electronic components
  • all-round protected, low surge current
  • trimmer
  • perforated housing
  • LED indicator light

 application:

  • industrial automation systems
  • alarm and monitoring systems
  • building automation installations
  • lighting systems
To download
Safety and product resources
Brand
ESPE
Entity responsible for this product in the EU
Amicus Sp. z o. o.More
Address: 19 Kwietnia 31DPostal code: 05-090City: RybieCountry: PolskaE-mail: biuro@amicus.pl
Symbol
HDN-1515
Producer code
5904139614174
Series
HDN
input voltage AC
100-240VAC
output voltage DC (V)
15V
DC adjustment range
14~16V
output current (A)
1A
power (W)
15W
efficiency
85%
mains frequency range
47/53Hz
permissible temperature range
0º~+40ºC
IP rating
IP20
enclosure
ABS plastic
dimensons
90x58x18mm
weight
70g
