DIN rail power supply 24V 6,25A 150W ESPE | HDN-15024

DIN rail power supply 24V 6,25A 150W ESPE | HDN-15024

Name: DIN rail power supply 24V 6,25A 150W ESPE | HDN-15024
Brand: ESPE
Price: 158.99 PLN
Availability: OutOfStock

+ Add to compare Add to shopping list

output voltage DC (V)

output current (A)

power (W)

Size

uniwersalny

158,99 PLN

incl. VAT / 1pcs

Lowest price in 30 days before discount: / pcs

Regular price: / pcs

List price:

You can buy for pts.

Notify about availability

You can also buy using:

Contact the shop staff, in order to estimate time of preparing this product for shipment.

Shipment

Free and fast delivery

14 days for free returns

This product is not available in a stationary store

Safe shopping

Deferred Payments. Buy now, pay later, if you don't return it

Buy now, pay later - 4 steps

When choosing a payment method, select PayPo. PayPo - buy now, pay later

PayPo will pay your bill in the store.
On the PayPo website, verify your information and enter your social security number.

After receiving your purchase, you decide what suits you and what doesn't. You can return part or all of your order - then the amount payable to PayPo will also be reduced.

Within 30 days of purchase, you pay PayPo for your purchases at no additional cost. If you wish, you spread your payment over installments.

After purchase you will receive pts.

Free delivery to paczkomatu

More information

Smile - deliveries from online stores when ordered from 50,00 PLN are for free.

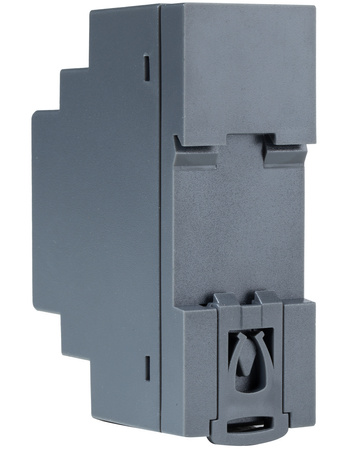

The ESPE-HDN15024 is a high-quality, high-performance switching power supply in a plastic enclosure for mounting on a 6U wide DIN TS35 mm rail. Its design is based on high-quality electronic components that allow for continuous, long-term operation. It is reliable, fully protected and stable. It provides high efficiency and excellent technical performance. The perforated housing provides good ventilation and the trimmer allows accurate voltage adjustment to compensate for voltage drop across the leads. Dual output terminals make it easy to connect loads.

SPECIFICATIONS:

input parameters:

Input voltage range 90-264 VAC
Frequency range of mains supply voltage: 47-53 Hz
no-load power consumption: less than 0.5 W

output parameters:

regulation type: CV - constant output voltage
Rated output voltage: 24 V
output voltage trimmer adjustment: 23-25 V
Rated output power: 150 W
rated load current 6,25 A
max. output voltage ripple: 150 mVp-p
energy conversion efficiency: over 90%
additional information:

operating temperature range: -20ºC to +70ºC
output protection: overcurrent protection (OCP), short circuit protection (SCP), overvoltage protection (OVP)
input protection: overvoltage (OVP), undervoltage (UVP)
CE, UKCA, RoHS

characteristics:

small dimensions
high power output
based on high-end electronic components
all-round protected, low surge current
trimmer
perforated housing
LED indicator light
dual output terminals

application:

industrial automation systems
alarm and monitoring systems
building automation installations
lighting systems

To download

Safety and product resources

Brand

ESPE

Entity responsible for this product in the EU

Amicus Sp. z o. o.More

Address: 19 Kwietnia 31DPostal code: 05-090City: RybieCountry: PolskaE-mail: biuro@amicus.pl

Symbol

HDN-15024

Producer code

5904139613535

Series

HDN

input voltage AC

90-264VAC

output voltage DC (V)

24V

DC adjustment range

23~25V

output current (A)

6,25A

power (W)

150W

efficiency

90%

mains frequency range

47/53Hz

permissible temperature range

-20º~+70ºC

IP rating

IP20

enclosure

ABS plastic

dimensons

105x58x90mm

weight

270 g
