Antenna power supply with separator 12V 300mA 3.6W
New in
Antenna power supply with separator 12V 300mA 3.6W
SPECIFICATIONS:
- input voltage: 100-240 VAC
- output voltage: 12 V
- rated load current: 300 mA
- output power: 3.6 W
- working temperature: 0°-40°C
- Output cable length: 1,5 m
- dimensions: 75X48X68 mm
- weight 61 g

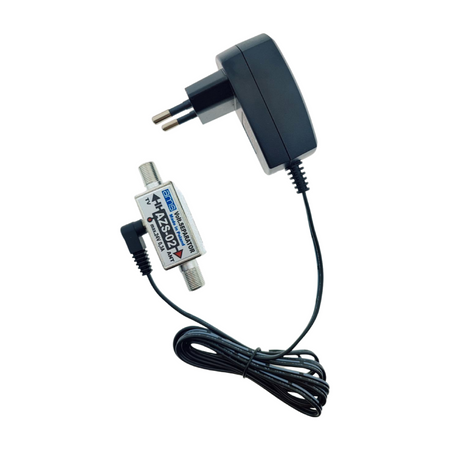

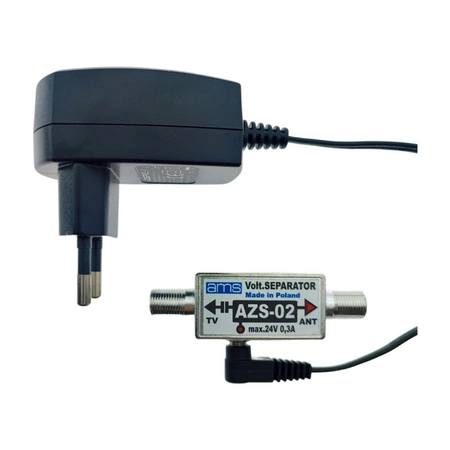

- ANTENNA SEPARATOR with F-type sockets - Polish PRODUCT!
- A power supply used to feed antenna amplifiers through a power separator.
- This type of circuit is used when the amplifier (amplifier system) needs to be supplied with 12 V and up to 300 mA.
- A system with an isolator is also used in cases where the distribution of the RTV signal is carried out on splitters that do not pass DC voltage, and it is required to feed the amplifier located on the mast or in the antenna box.
To download
Brand
Entity responsible for this product in the EU
Amicus Sp. z o. o.More
Address:
19 Kwietnia 31DPostal code: 05-090City: RybieCountry: PolskaE-mail: biuro@amicus.pl
Symbol
ESPE-0312-W2E-AZS
Producer code
5904139606353
Series
input voltage AC
100-240VAC
output voltage DC (V)
12V
output current (A)
0,3A
power (W)
3,6W
polarization
no
efficiency
75%
mains frequency range
47/63Hz
permissible temperature range
0º~+40ºC
enclosure
ABS plastic
dimensons
75x48x68mm
weight
61g
